Echo basics: Parasternal Views
Echocardiography Views
Patient position coupled with probe placement and orientation for optimal parasternal long-axis (PLAX) and parasternal short-axis (PSAX) views. See next post for apical and subcostal views

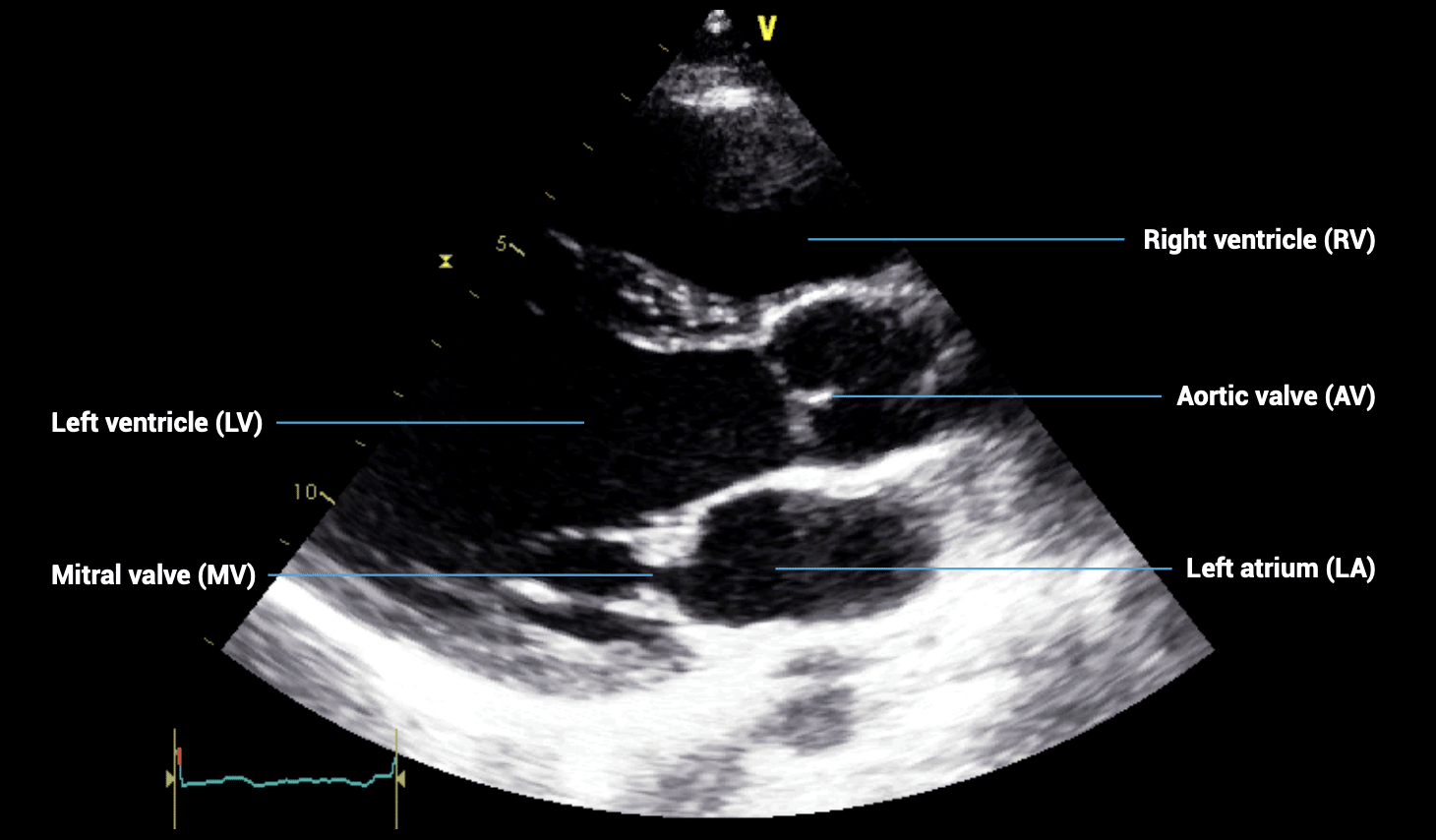

PARASTERNAL LONG-AXIS (PLAX) VIEWS – Obtaining an optimal image
- Patient position: lying on left side, left arm raised, raise the back of the bed or use pillows under the left shoulder
- Probe position: 4th intercostal space, left sternal edge
- Probe orientation: notch towards patient’s right shoulder

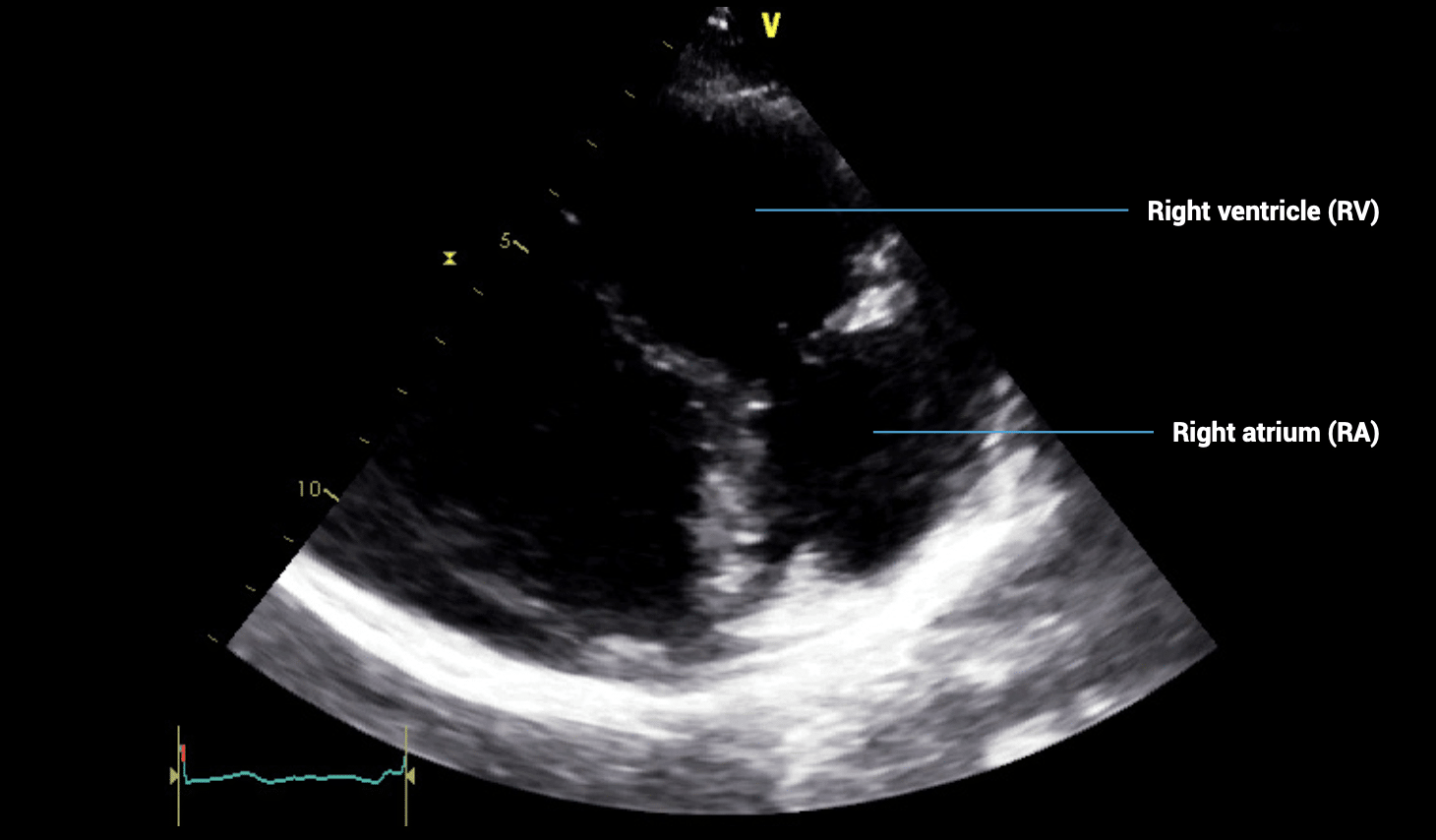

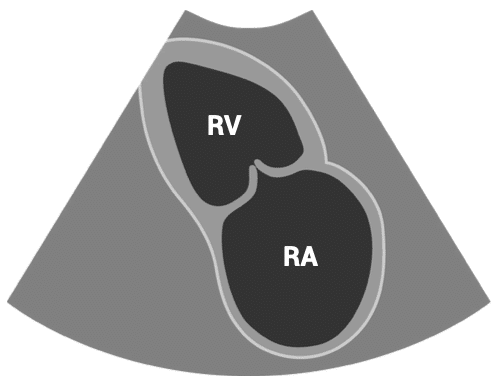

PARASTERNAL LONG-AXIS (PLAX) VIEWS – PLAX inflow view
- Patient position: lying on left side, left arm raised, raise the back of the bed or use pillows under the left shoulder
- Probe position: 4th intercostal space, left sternal edge
- Probe orientation: notch towards patient’s right shoulder

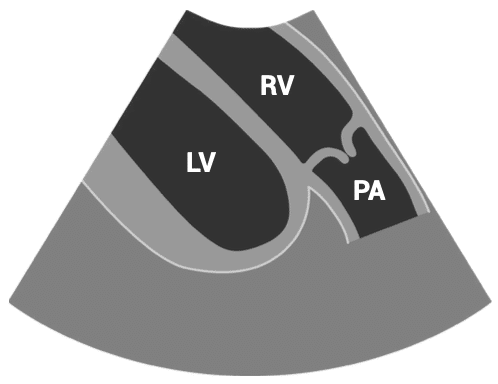

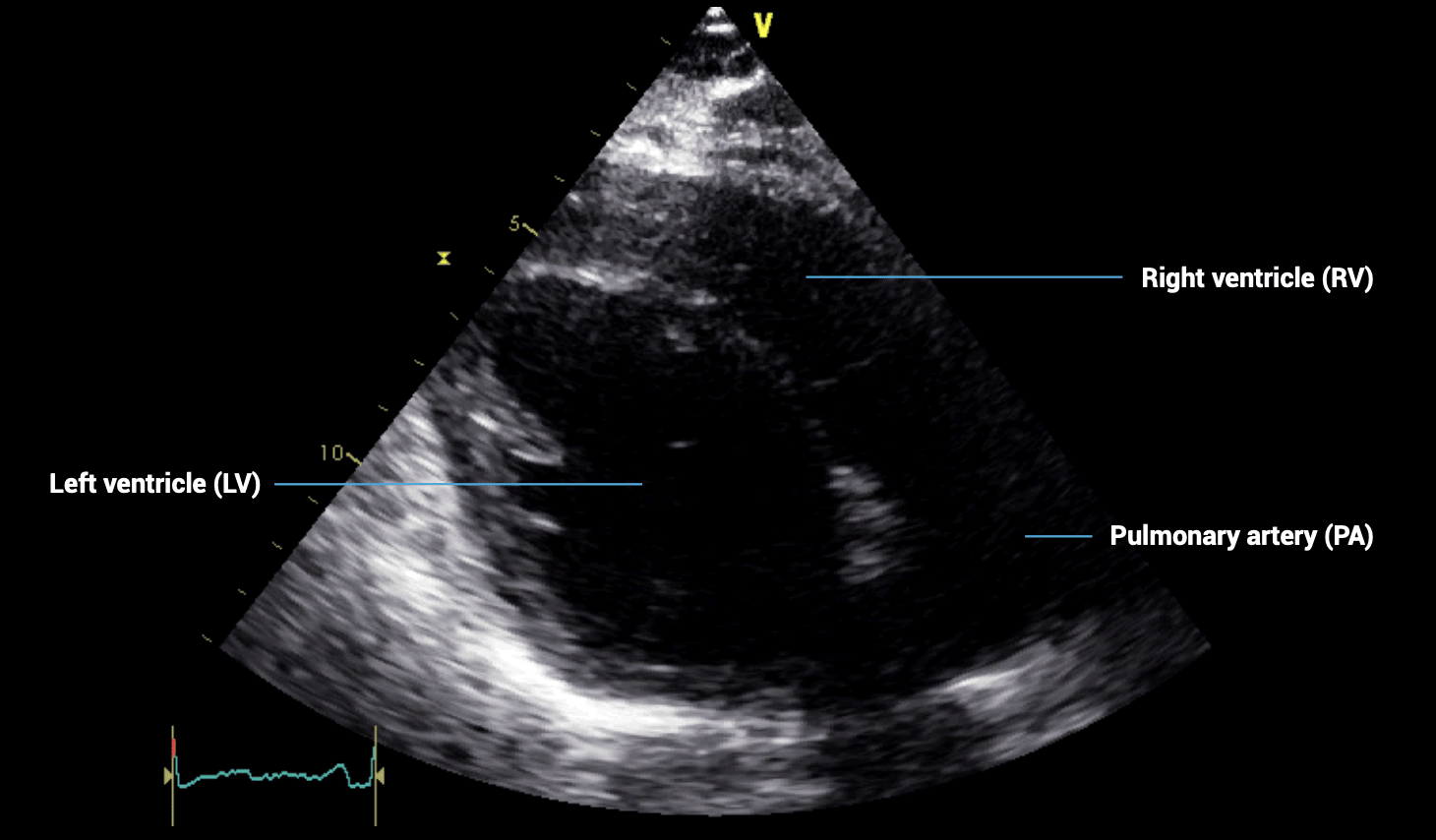

PARASTERNAL LONG-AXIS (PLAX) VIEWS – PLAX outflow view
- Patient position: lying on left side, left arm raised, raise the back of the bed or use pillows under the left shoulder
- Probe position: 4th intercostal space, left sternal edge
- Probe orientation: notch towards patient’s right shoulder

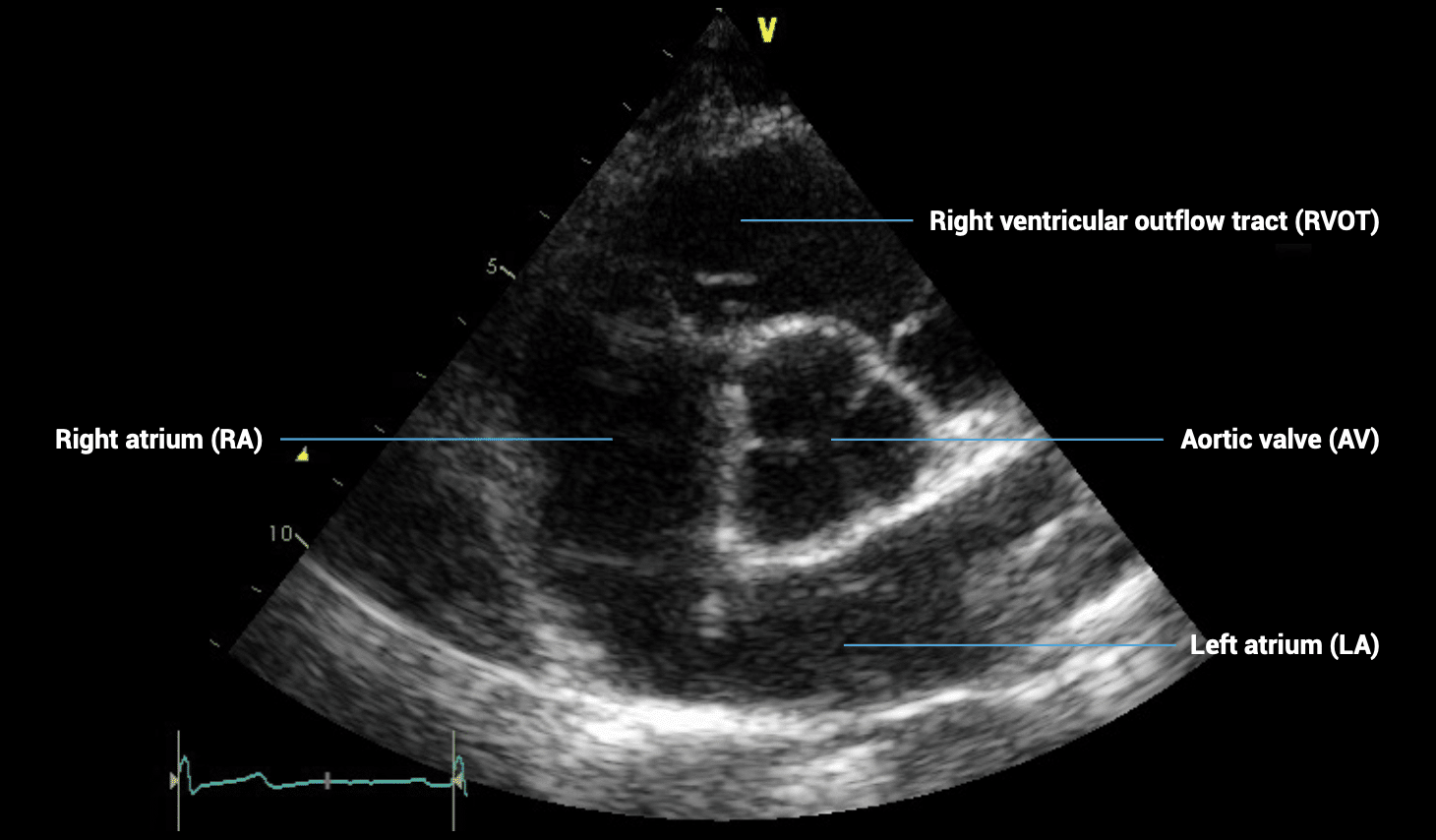

PARASTERNAL SHORT-AXIS (PSAX) VIEWS – PSAX aortic valve view
- Patient position: lying on left side, left arm raised, raise the back of the bed or use pillows under the left shoulder
- Probe position: 4th intercostal space, left sternal edge
- Probe orientation: notch towards patient’s left shoulder
Tilt probe upwards towards head to show aorta as a circle.

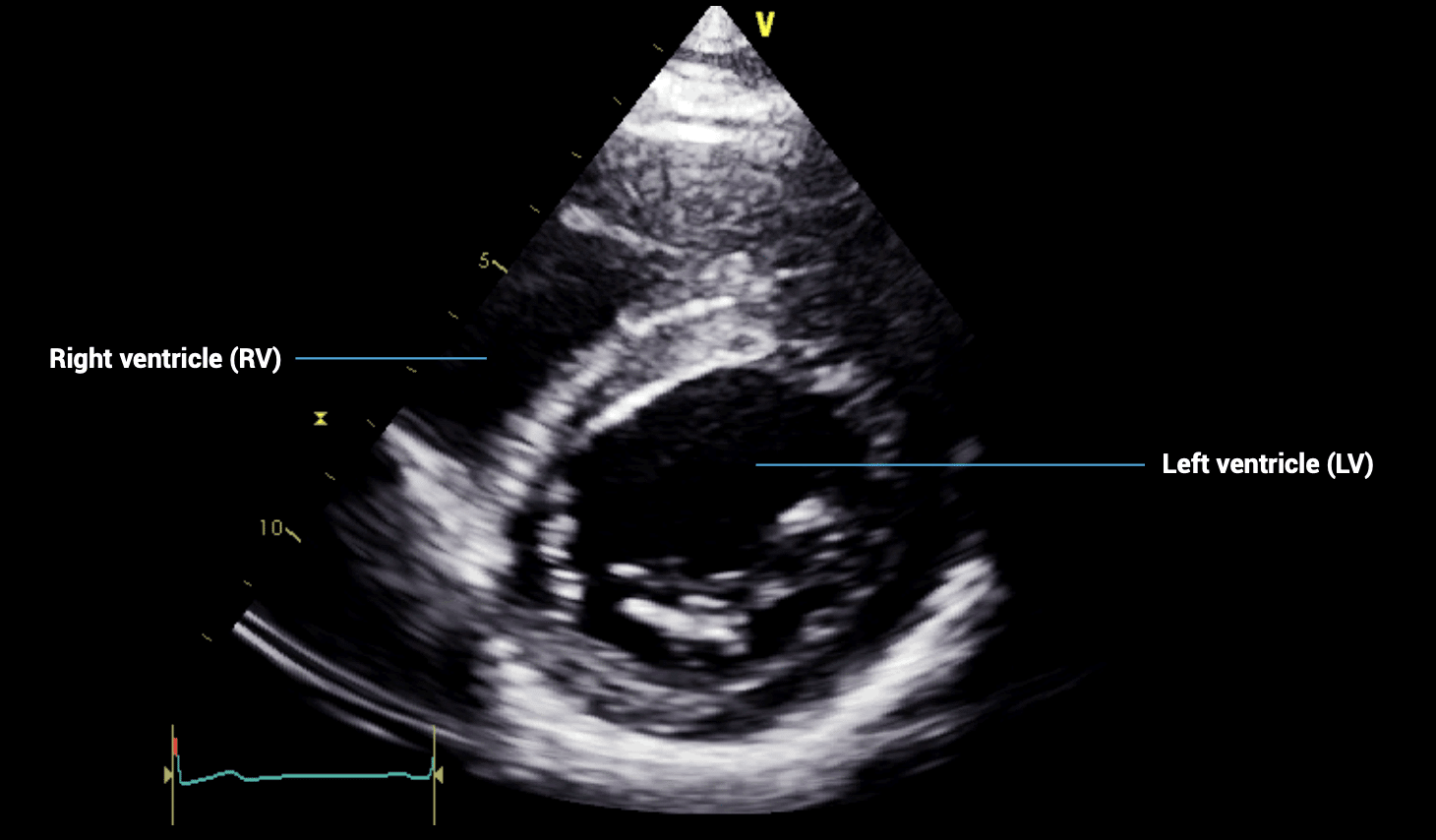

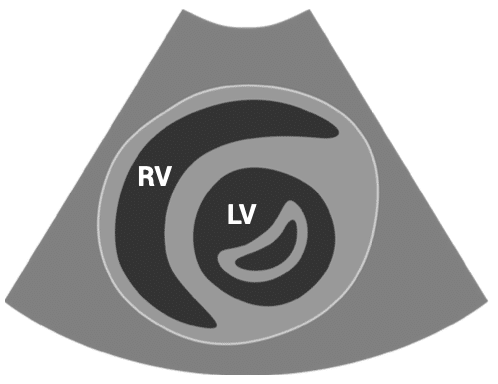

PARASTERNAL SHORT-AXIS (PSAX) VIEWS – PSAX mitral valve view
- Patient position: lying on left side, left arm raised, raise the back of the bed or use pillows under the left shoulder
- Probe position: 4th intercostal space, left sternal edge
- Probe orientation: notch towards patient’s left shoulder
Tilt probe downwards towards spine to show left ventricle as a perfect circle.

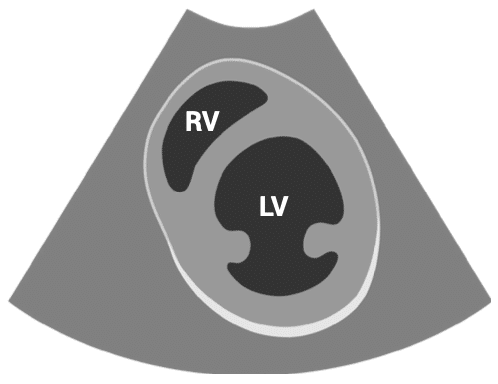

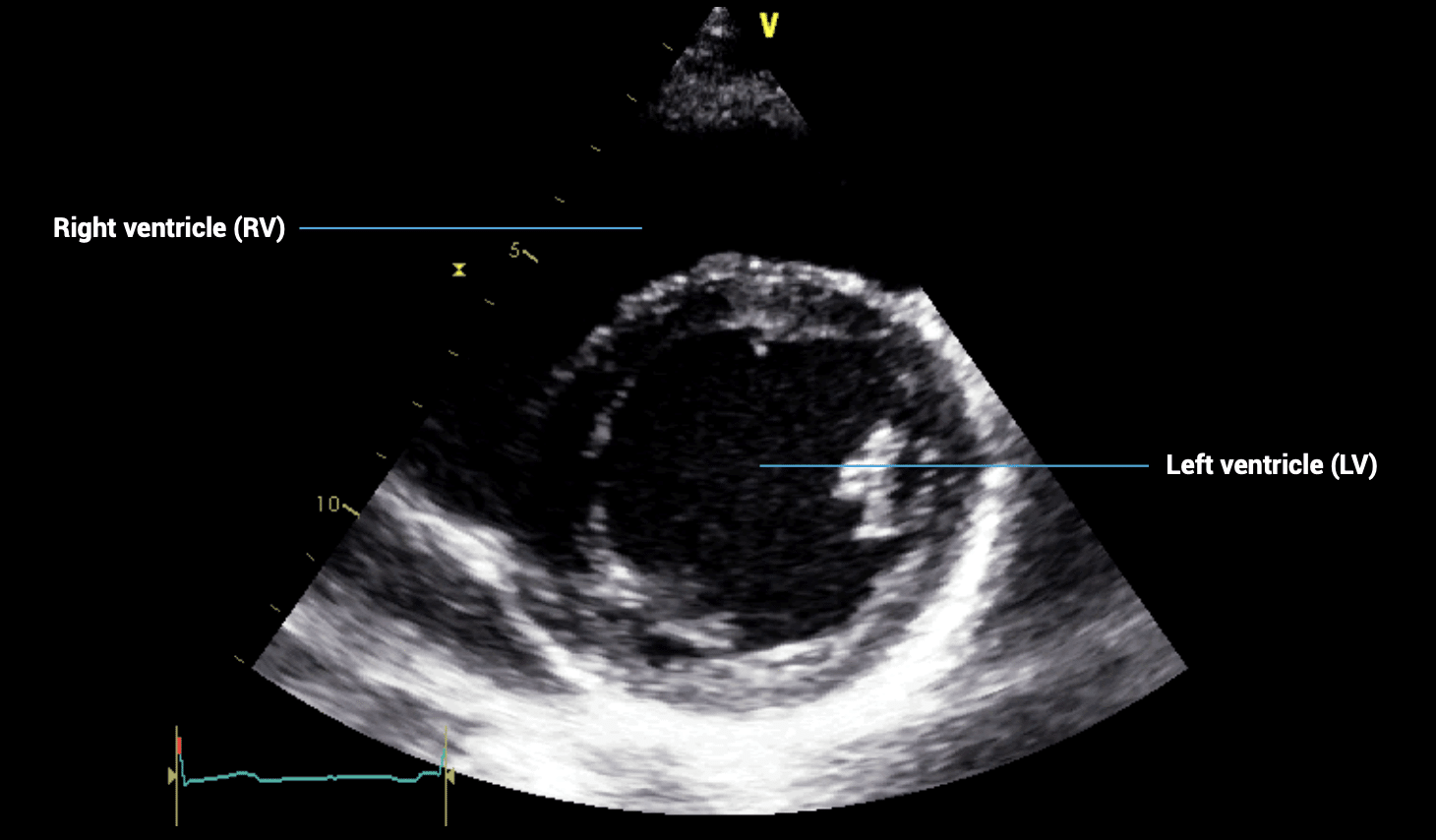

PARASTERNAL SHORT-AXIS (PSAX) VIEWS – PSAX papillary muscle view
- Patient position: lying on left side, left arm raised, raise the back of the bed or use pillows under the left shoulder
- Probe position: 4th intercostal space, left sternal edge
- Probe orientation: notch towards patient’s left shoulder
Tilt the probe even further towards the spine keeping the left ventricle as a circle but showing the papillary muscles instead of the mitral valve.
This is an edited excerpt from the Medmastery course Echocardiography Essentials by Helen Rimington, PhD. Acknowledgement and attribution to Medmastery for providing course transcripts.
