Echo basics: Aortic Stenosis

Causes of Aortic Stenosis

• Calcific degeneration is the most common cause:
  • Typically affects trileaflet valves in patients over 75 years.
  • In younger patients (under 65), it is often associated with bicuspid valves.
• Rheumatic valve disease:
  • Now rare in North America and Europe.
  • Remains prevalent worldwide.

Identifying the Underlying Cause

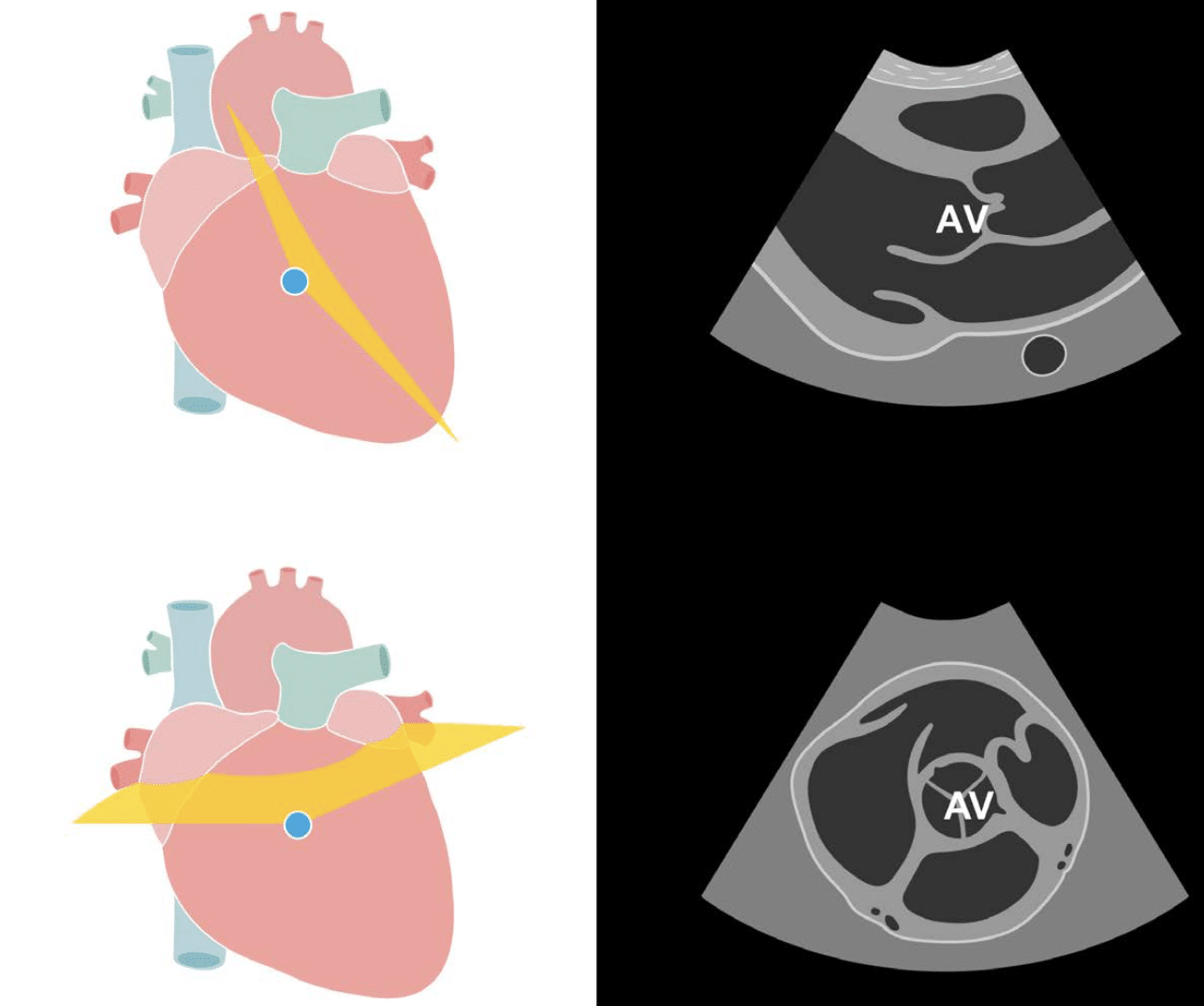

• The parasternal long-axis and short-axis views are key in evaluating valve morphology.

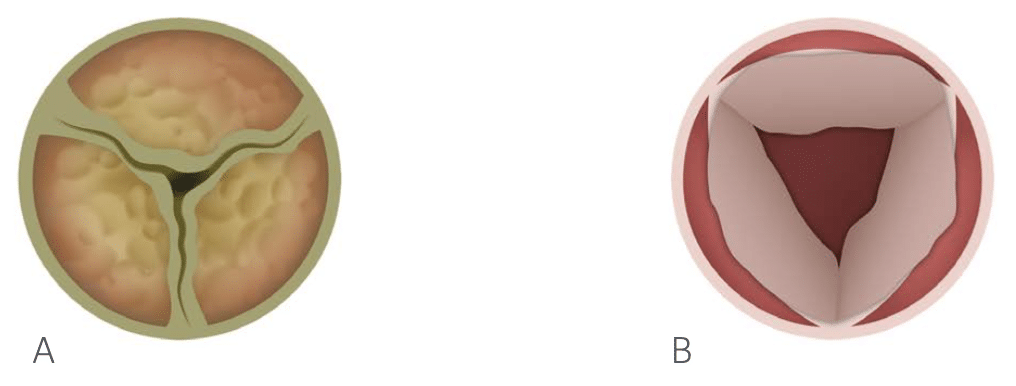

• Calcific degeneration:
  • Involves central and basal cusp calcification.
• Rheumatic stenosis:
  • Characterized by commissural fusion.

Assessing Cusp Configuration

• Calcium may obscure cusp number, making diagnosis challenging.
• Unicuspid valve:
  • Single slit-like commissure with eccentric opening.
• Bicuspid valve:
  • Two cusps of equal size, two sinuses, and a single commissure.
  • May appear trileaflet if a raphe (seam) is present.

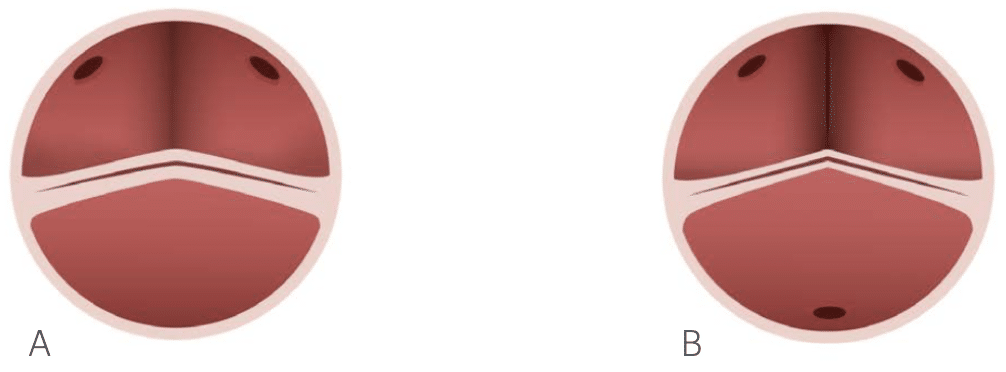

• Distinguishing bicuspid vs trileaflet:
  • Observe during systole.
  • If three sinuses are present, but cusp fusion is seen → trileaflet with fusion.

Visual Cues Suggesting Bicuspid Valve

• Asymmetric calcification pattern.
• Absence of the star-shaped opening seen in normal trileaflet valves.
• Look for raphe and cusp fusion dynamics during systole.

Grading Valve Calcification

• Mild calcification:
  • Localized echobright spots on cusps.
• Moderate calcification:
  • More extensive echobright areas.
• Severe calcification:
  • Diffuse thickening with strong echogenicity.

Valve Mobility in Aortic Stenosis

• In aortic stenosis, cusp motion is restricted:
  • Cusps do not open fully during systole.
  • Tips often point centrally into the aorta.
• Reduced mobility is suggestive of severity:
  • However, visual assessment alone is insufficient for definitive diagnosis.

---

Measuring an Accurate Aortic Valve Gradient

Best Practice Recommendations

• Use Doppler-based measurements to:
  • Record the peak jet velocity through the aortic valve.
  • Calculate the mean pressure gradient across the valve.

Doppler Technique

• Continuous wave (CW) Doppler is essential for measuring flow velocity across the aortic valve.
• To ensure the maximum velocity is captured:
  • Use multiple acoustic windows:
    • Apical view (standard).
    • Right sternal edge (often gives the highest velocity).
    • Suprasternal notch.

Use of CW Doppler Probe

• A stand-alone CW Doppler probe (non-imaging) can be especially effective at the right sternal edge:
  • It has a small footprint and can be better aligned with blood flow.
  • However, it requires practice, so routine use is recommended to gain familiarity.

Recording and Reporting

• Document the maximum recorded jet velocity.
• Always include which view or acoustic window the velocity was obtained from:
  • This assists with comparison in serial studies.

Optimizing the Doppler Signal

• The spectral display should:
  • Fill the vertical axis of the display.
  • Be recorded with a sweep speed of 50–100 mm/s.
  • Show a smooth, dense-edged signal with a well-defined peak.
• Measurements:

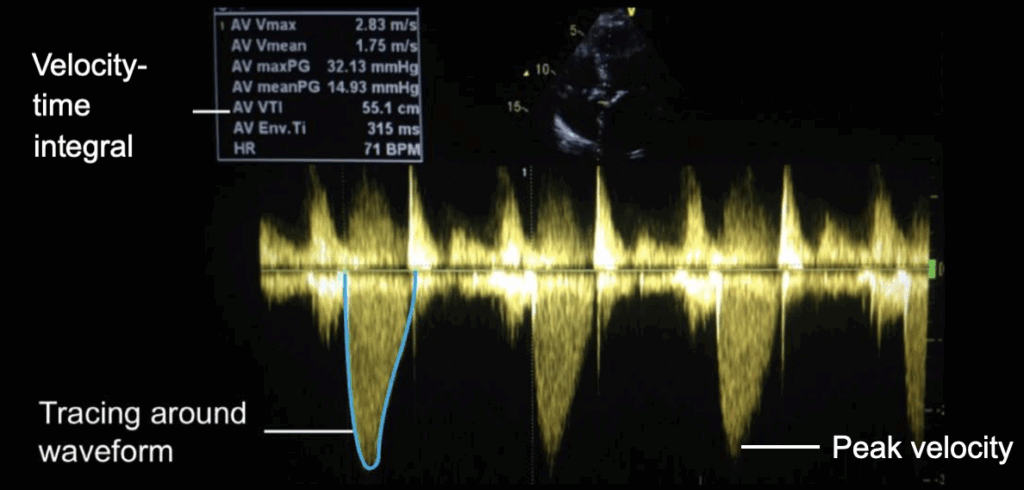

  • Peak velocity should be measured at the top of the Doppler curve.
  • Mean gradient is calculated by tracing the curve (using the outer edge to generate the velocity-time integral or VTI).

---

Calculating the Aortic Valve Area

The Continuity Equation

The effective aortic valve area (AVA) is calculated using the continuity equation, based on the principle that flow through the left ventricular outflow tract (LVOT) equals flow through the aortic valve.

Three Essential Measurements

1. Aortic valve VTI (Velocity Time Integral)
   • Use continuous wave (CW) Doppler to trace the velocity curve across the aortic valve and obtain the VTI.
2. LVOT VTI
   • Use pulsed wave (PW) Doppler, typically from the apical five-chamber view.
   • Place the sample volume just before the aortic valve.
   • A correct position will show a smooth, peaked Doppler waveform—trace this to calculate the LVOT VTI.
3. LVOT Diameter
   • Measure at the annular level from a zoomed parasternal long-axis view.
   • Use inner-edge to inner-edge caliper placement during mid-systole.
   • Ensure consistency and precision, as errors are exponentially magnified (since area = πr²).

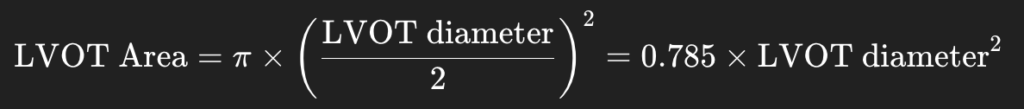

   • The LVOT area is calculated as:

Calculation Principles

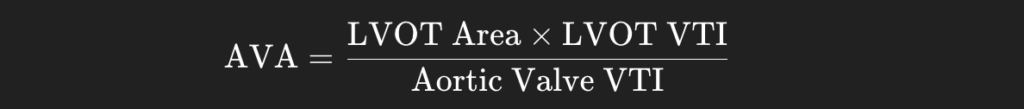

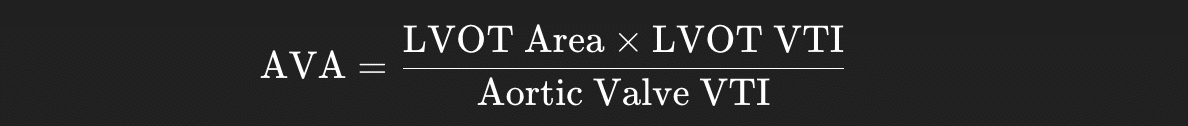

• The continuity equation:

• Measure 3 or more cardiac cycles in sinus rhythm and more in atrial fibrillation to improve accuracy.
• Remember:
  • The LVOT is often elliptical, not perfectly circular.
  • Inaccurate LVOT diameter measurements will disproportionately affect the final AVA due to squaring.

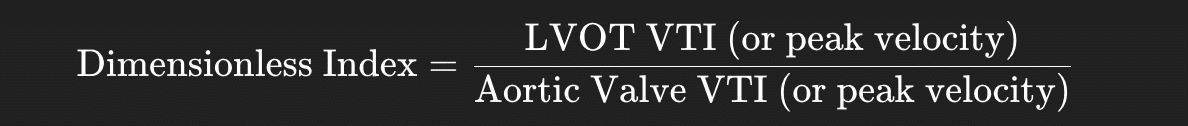

Dimensionless Index (Velocity Ratio)

• This is an alternative method to estimate stenosis severity without using LVOT diameter:

• Interpretation:
  • ≈ 1.0 = Normal (no stenosis)
  • < 1.0 = Stenosis present
  • ≤ 0.25 = Severe aortic stenosis

---

Diagnosing Low-Flow States

Importance of Left Ventricular Function

Assessment of left ventricular (LV) function is essential because it:

• Provides important prognostic information
• Guides clinical management
• Influences the assessment of aortic stenosis severity

The Effect of Low Flow on Aortic Valve Assessment

When LV function is impaired:

• Transvalvular flow is reduced
• Cusp opening of the aortic valve is limited
• Continuity equation–based AVA (aortic valve area) may appear reduced, even if true severe aortic stenosis is not present

---

Diagnosing Paradoxical Low Flow

Understanding Paradoxical Low-Flow, Low-Gradient Aortic Stenosis

In some cases, discordant echocardiographic findings may be observed:

• Low transvalvular gradient
• Small aortic valve area (AVA)
• Low calculated stroke volume
• Normal left ventricular ejection fraction (LVEF)

This scenario is known as paradoxical low-flow, low-gradient aortic stenosis (AS) with preserved ejection fraction.

Mechanism Behind Paradoxical Low Flow

• The low-flow state is typically due to left ventricular concentric hypertrophy, which:
  • Reduces ventricular cavity size
  • Results in lower total stroke volume, even with normal ejection fraction
  • Leads to reduced forward flow across the stenotic aortic valve

Key Considerations

• Recheck all measurements before making the diagnosis
• Rule out measurement error and severe systemic hypertension, both of which can mimic this picture
• Elevated blood pressure is often present and may contribute to reduced forward flow

Next Steps in Evaluation

• Once technical and physiological confounders are excluded, further evaluation should include:
  • Clinical correlation
  • Additional imaging (e.g., CT calcium scoring, cardiac MRI)
  • Integration of all findings to determine if true severe AS is present

---

Managing a Patient with Aortic Valve Disease

General Principles

• Management decisions should be individualized and based on a risk–benefit assessment.
• Ideally coordinated through a multidisciplinary heart valve team with expertise in:
  • Structural heart interventions
  • Cardiac surgery
  • Imaging
  • Heart failure

Aortic Stenosis (AS) Monitoring Guidelines

Severity	Symptoms	Echo Surveillance
Mild AS	Asymptomatic	Every 3–5 years
Moderate AS	Asymptomatic	Every 1–2 years
Severe AS	Asymptomatic with peak velocity > 4 m/s	Every 6 months

• If maximum jet velocity increases > 0.3 m/s per year, surgery should be considered.

Indications for Intervention in Aortic Stenosis

• Symptomatic severe AS → Urgent valve intervention (surgical AVR preferred; TAVI if high risk).
• Asymptomatic severe AS with reduced LV ejection fraction (<50%) → Surgical valve replacement.
• Asymptomatic patients undergoing CABG or other valve surgery → Concomitant AVR recommended.

Follow-Up Considerations

• Consistency in serial echocardiography is essential.
• Use standardized imaging windows and measurement techniques across time points.
• Inconsistency can lead to false interpretation and inappropriate management.

---
