Echo basics: Mitral Valve

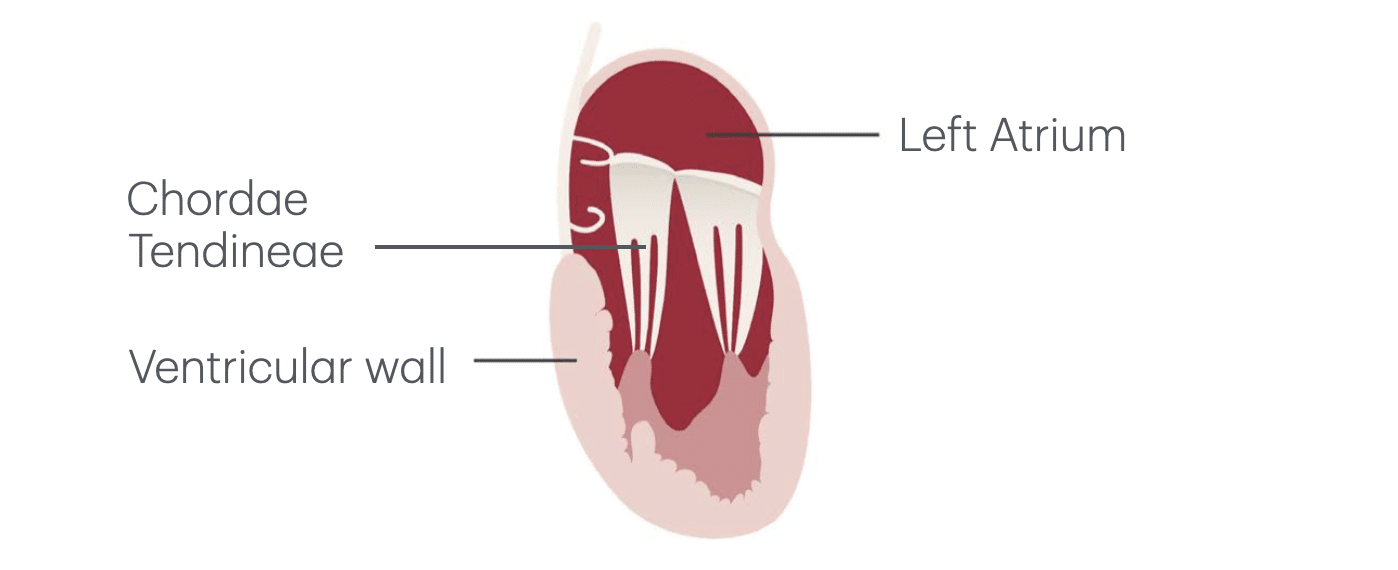

Normal mitral valve echo anatomy

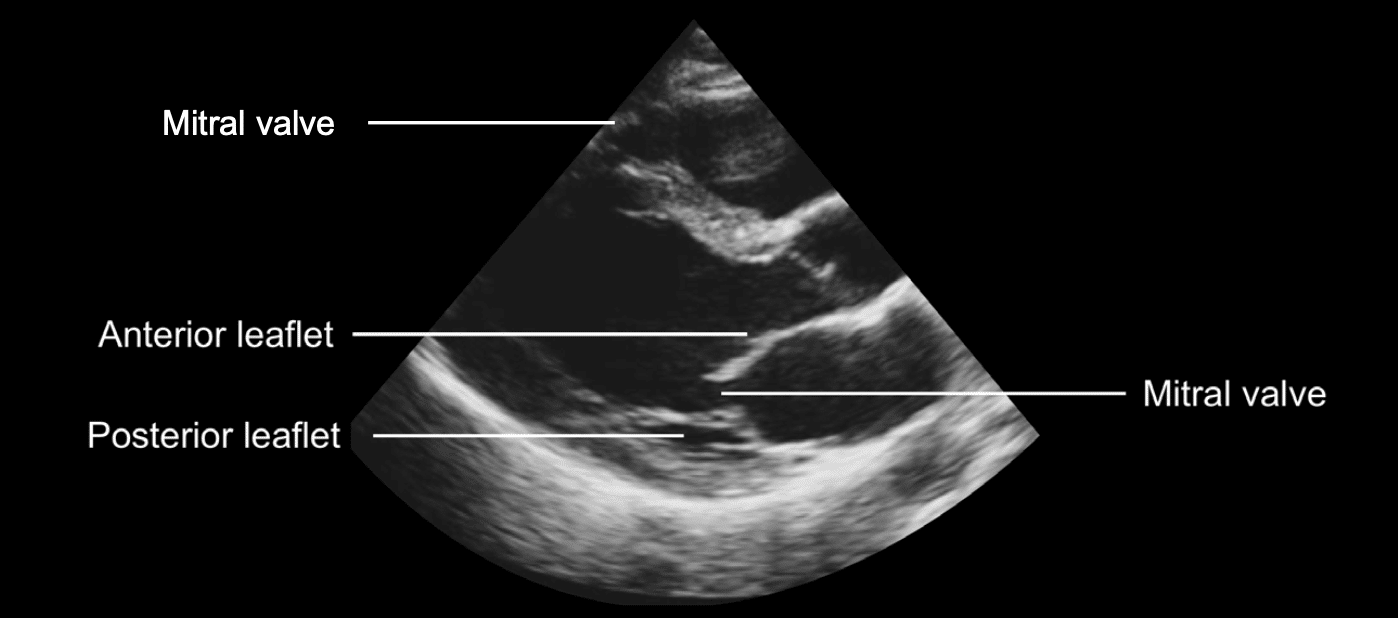

Parasternal Long-Axis View

• The mitral valve leaflets are thin and echogenic, appearing similar in brightness.
• The anterior leaflet is longer and nearly contacts the ventricular septum during diastole.
• During systole, both leaflets coapt at their tips, forming the zone of apposition.
• This view typically shows A2 and P2 scallops when aligned correctly.
• Chordae tendineae are seen extending from leaflet tips to posteromedial papillary muscles.

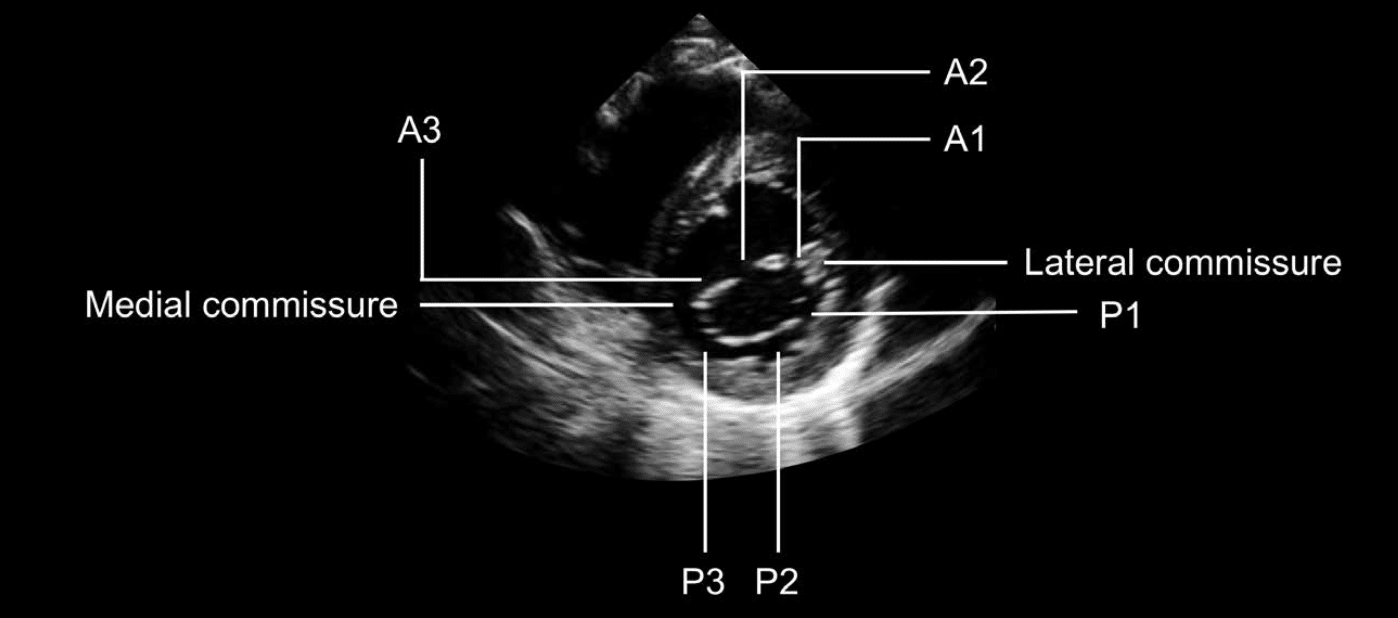

Parasternal Short-Axis View

• Excellent for identifying leaflet subdivisions.
• The posterior leaflet has three scallops: P1, P2, and P3.
  • These appear in reverse order on the image:
    • P3 = medial (left side)
    • P2 = central
    • P1 = lateral (right side)
• The anterior leaflet corresponds to A1, A2, A3, arranged to match posterior scallops.
• Mitral commissures (lateral and medial) mark junctions between anterior and posterior leaflets.

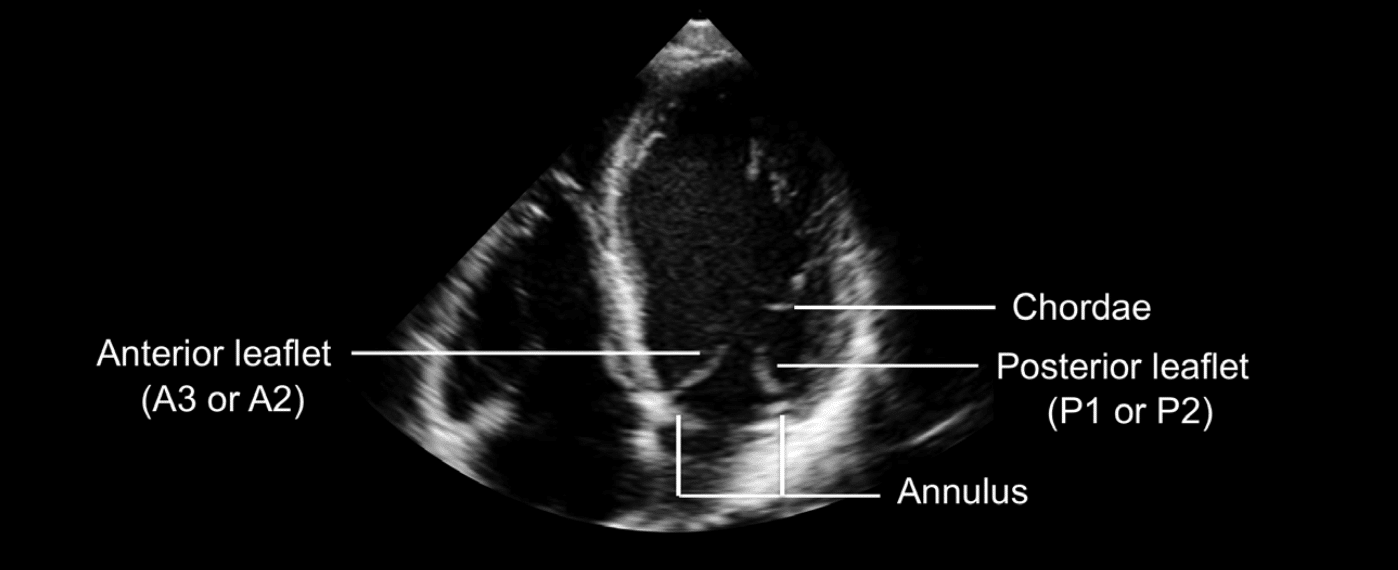

Apical Four-Chamber View

• Anterior leaflet appears on the septal (left) side, posterior leaflet on the lateral (right) side.
• Commonly visualized scallops:
  • Anterior: A2 or A3
  • Posterior: P1 or P2
• Chordae can be traced to the anterolateral papillary muscle.
• The mitral annulus shows its major dimension, with its saddle shape apparent.

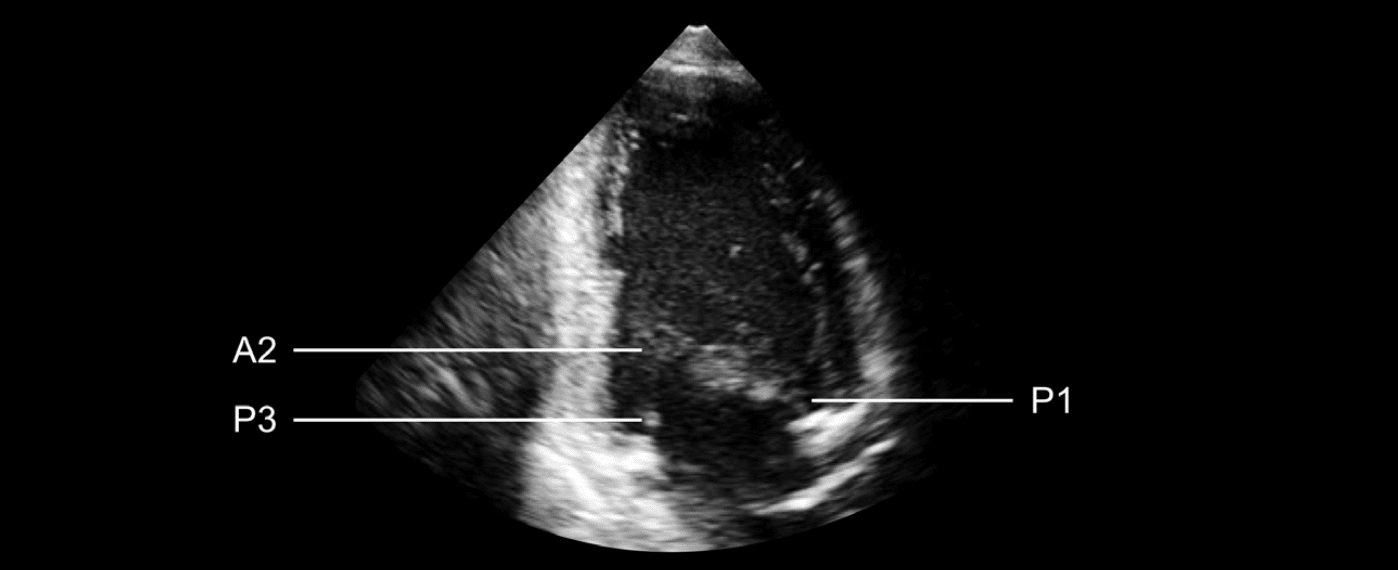

Apical Two-Chamber View

• Predominantly shows posterior leaflet (especially P1 and P3).
• The anterior leaflet is viewed en face (flat-on).
• In a true two-chamber image:
  • Left side = P3
  • Middle = A2
  • Right side = P1
• This view is useful for both structural and color Doppler flow assessment.

Apical Long-Axis (Three-Chamber) View

• Similar to parasternal long-axis view, but with slightly deeper visualization.
• May have lower resolution but is well-suited for:
  • Doppler alignment
  • Color flow interrogation

---

Recognising an abnormal mitral valve

A detailed and accurate assessment of the mitral valve requires a methodical, step-by-step approach that evaluates each component of the valve apparatus and its surrounding structures.

Stepwise Valve Inspection

Leaflets:

• Are the anterior and posterior leaflets thin and pliable?
• Or do they appear thickened with restricted movement?

Annulus:

• Is the annulus echogenic (bright)?
• Is the calcification localized or diffuse?
• View in multiple windows for a comprehensive assessment.

Chordae tendineae:

• Do they appear thicker or brighter than usual (suggesting calcification)?
• Are they shortened, fused, or ruptured?

Surrounding myocardium:

• Assess for thinning or scarring, particularly in patients with coronary artery disease.

Left atrium:

• Check for thrombus, especially in atrial fibrillation.
• Evaluate for atrial dilatation, commonly associated with valve dysfunction.

Left ventricle:

• Assess for dilatation, which may enlarge the annulus and impair coaptation.

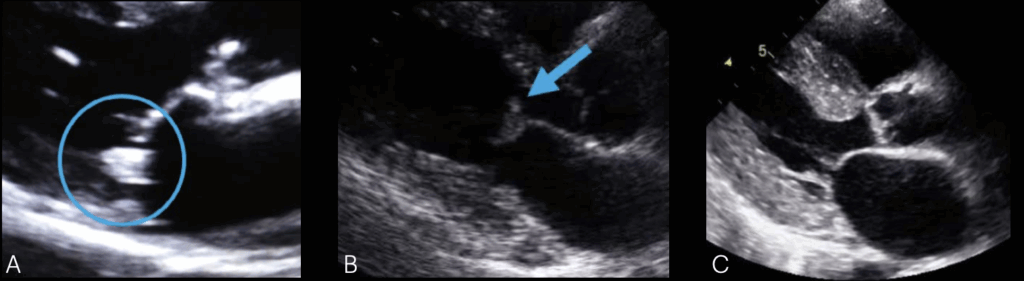

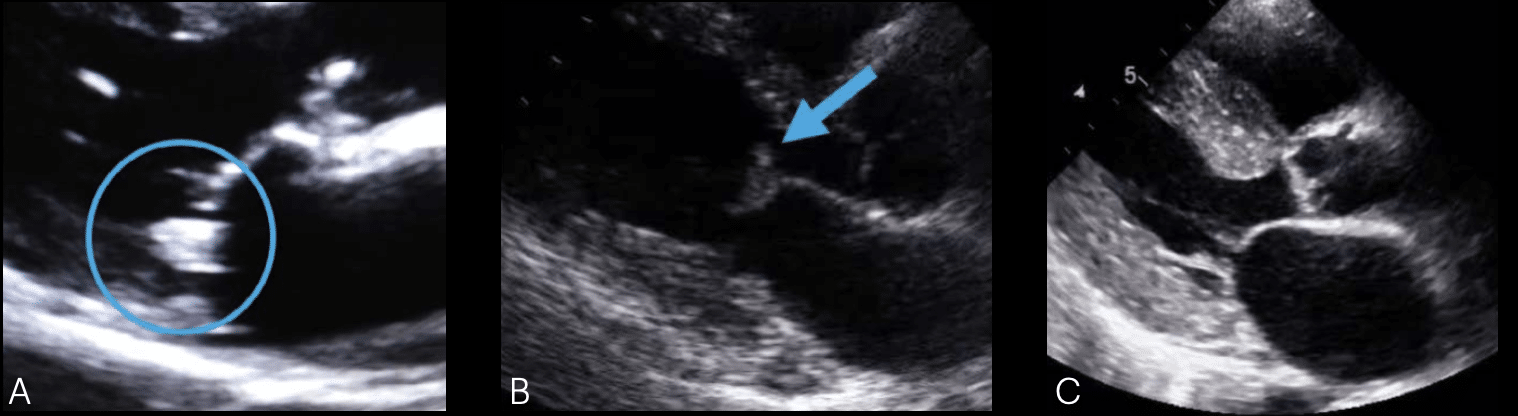

Characteristic Pathological Patterns

Rheumatic Heart Disease:

• Thickened leaflet tips, possible calcification.
• Restricted motion, leading to doming or “hockey stick” appearance in diastole.
• Often involves shortened or calcified chordae.

Degenerative Mitral Valve Disease:

• Diffuse thickening of the entire leaflet.
• May range from:
  • Fibroelastic deficiency: localized prolapse, thinner valve structure.
  • Barlow syndrome: excess leaflet tissue, myxomatous degeneration, elongated and ruptured chordae, leaflet prolapse.

Mitral Valve Prolapse:

• Leaflets move >2 mm above annulus into the LA.
• Symmetric prolapse: both leaflets involved.
• Asymmetric prolapse: single leaflet—higher risk of rupture and flail.

Barlow Valve (Extreme Degeneration):

• Excess leaflet tissue, diffuse myxomatous change, and chordal elongation or rupture.

Other Notable Pathologies

Mitral Annular Calcification:

• Common in elderly and renal patients.
• Typically begins in the posterior annulus.
• May impair leaflet motion if calcification is extensive.
• Best visualized in parasternal long-axis and short-axis views.

Infective Endocarditis:

• Mobile echodensities (vegetations) attached to leaflets.
• Possible leaflet perforation, flail leaflet due to chordal rupture.

Infiltrative Cardiomyopathy:

• Valve leaflets may appear thickened due to tissue infiltration.
• Coaptation is often impaired.

Functional (Secondary) Mitral Valve Abnormalities

Ischemic Heart Disease:

• Papillary muscle dysfunction alters chordal tension.
• Results in leaflet tethering and poor apposition.
• May lead to mitral regurgitation despite normal leaflet morphology.
• Severe ischemia can cause papillary muscle rupture → flail leaflet.

Dilated Cardiomyopathy:

• Annular dilation and apical tethering of leaflets.
• Subvalvular distortion impairs leaflet coaptation.
• Functionally significant mitral regurgitation despite structurally normal leaflets.

Conclusion

A systematic echocardiographic inspection of the mitral valve and its surrounding structures—across multiple views—helps accurately determine the type and severity of valve disease. Recognising structural changes, mobility abnormalities, and associated functional changes is essential for a clinically useful report.

---
