Echo basics: Mitral Regurgitation

Identifying mitral valve regurgitation

Use of Colour Doppler Imaging

Routine Practice:

• Colour Doppler should be applied in almost every view when assessing the mitral valve.

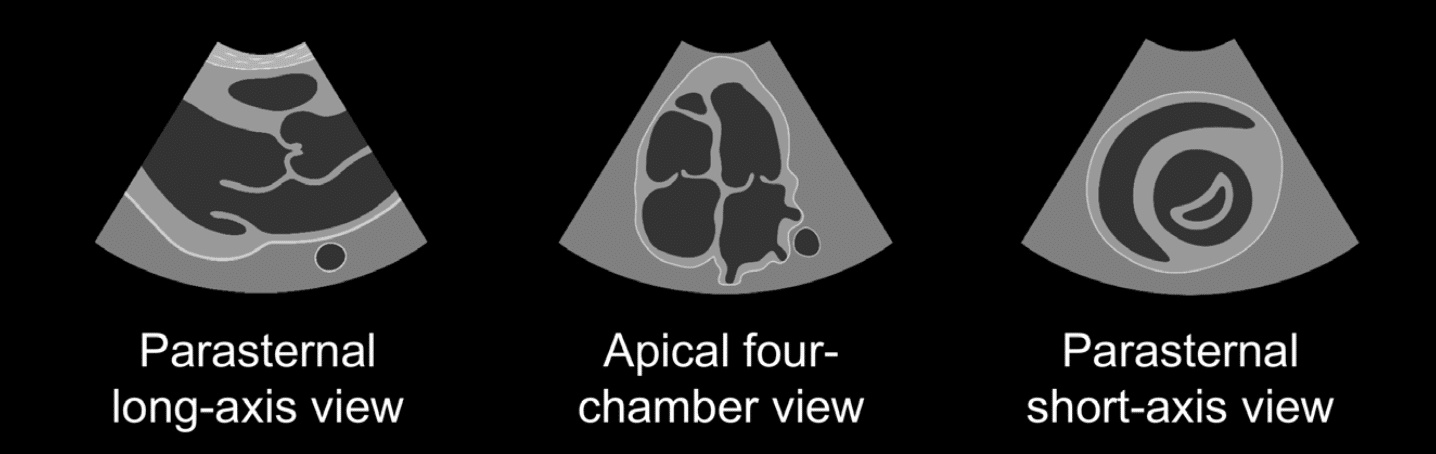

• Particularly useful views:
  • Parasternal long-axis
  • Apical four-chamber
  • Apical two-chamber
  • Parasternal short-axis

Colour Box Optimization:

• Size the colour box to capture the region above and below the valve, but keep it as small as possible for optimal frame rate.

Jet Identification:

• Mitral regurgitation appears as a predominantly blue jet (away from the probe) in standard imaging orientation.

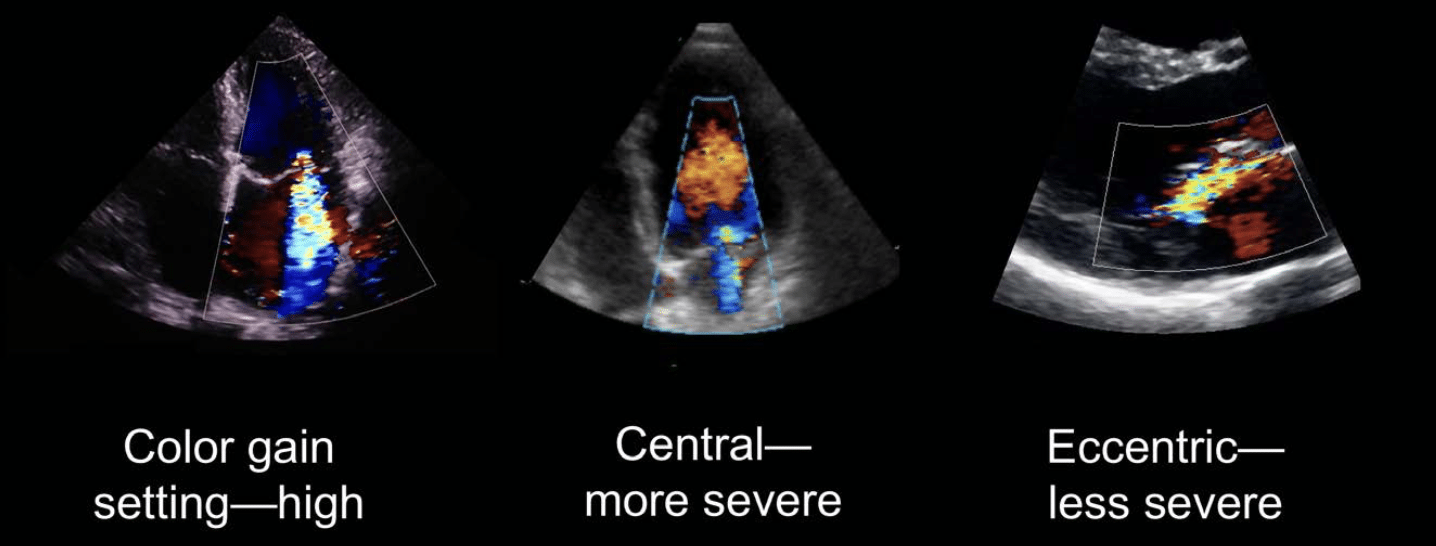

• Determine whether the jet is:
  • Central (directly into the atrium)
  • Eccentric (directed towards atrial walls)

Caution in Visual Interpretation:

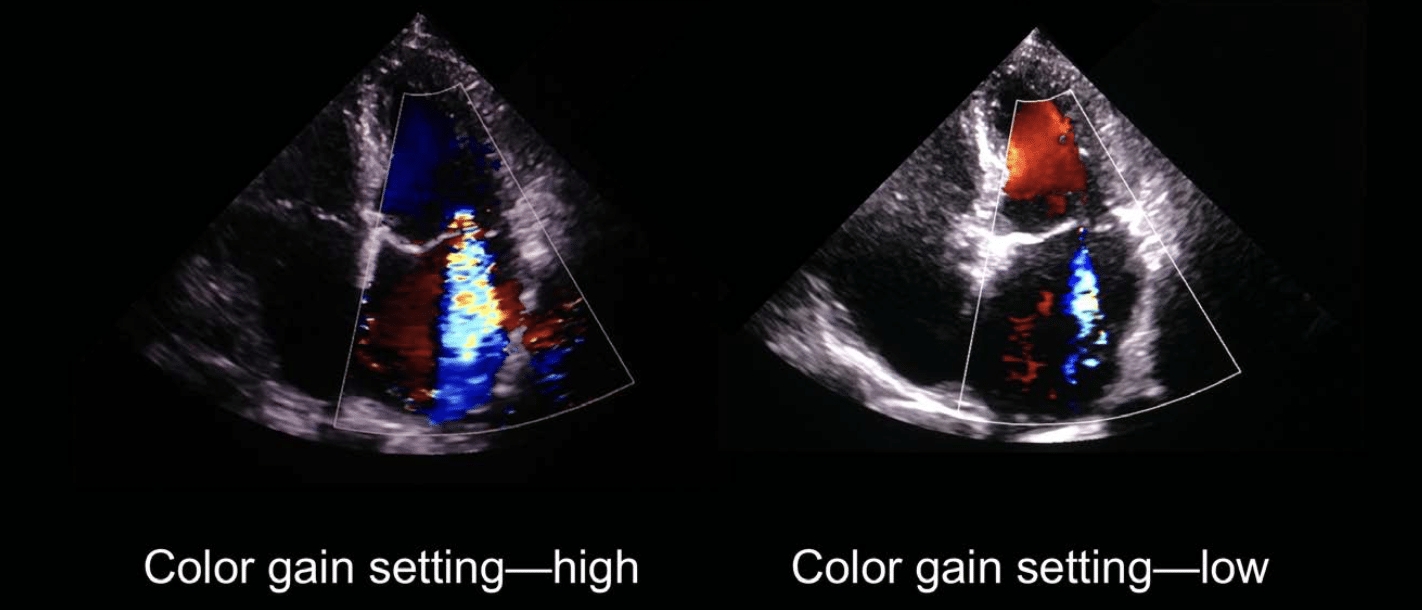

• High gain settings may overestimate MR severity.
• Central jets appear more severe due to beam alignment.

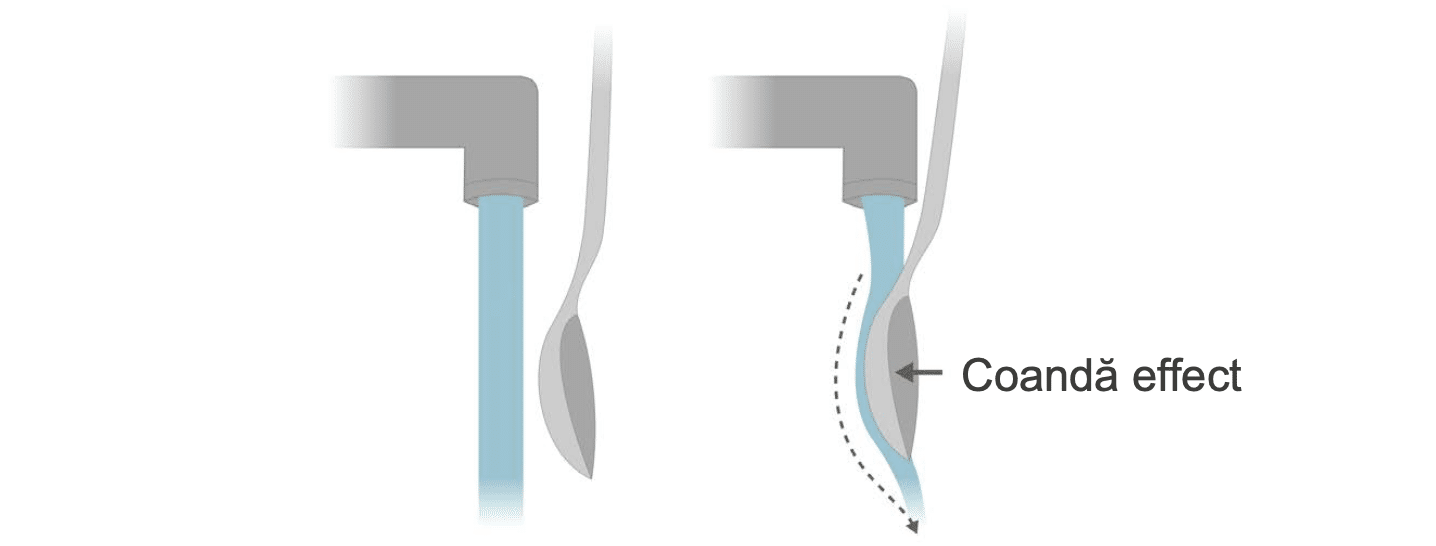

• Eccentric jets may be underestimated due to the Coandă effect, where the jet clings to the atrial wall, appearing smaller than it is.

Doppler Assessment of Mitral Regurgitation

Preferred View:

• The apical four-chamber view provides the best alignment with regurgitant flow for Doppler analysis.

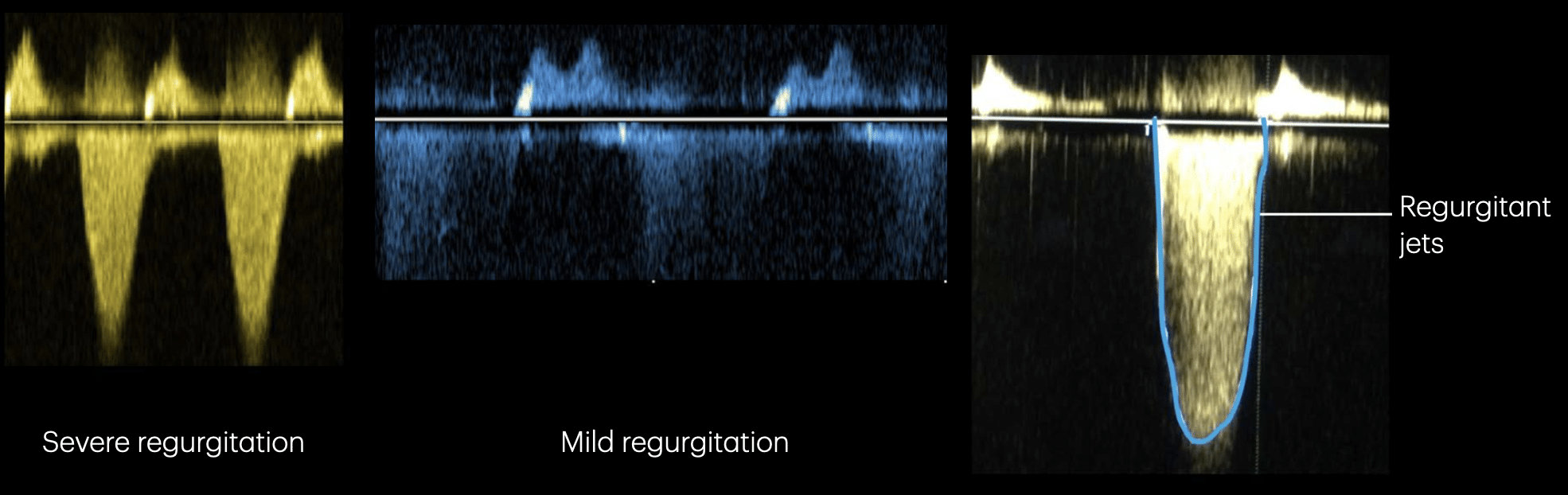

Spectral Doppler Features:

• MR jets appear as high-velocity systolic signals below the baseline.
• Signal density helps gauge severity:
  • Bright, dense signal = moderate to severe MR
  • Faint, low-density signal = mild MR

Comparison Strategy:

• Compare regurgitant jet density with the mitral inflow signal:
  • If similar, MR is likely severe.
  • Note: Off-axis jets can result in underestimation of severity.

Structural and Functional Assessment

Left Ventricular Dimensions:

• Chronic MR leads to volume overload and progressive LV dilatation.
• Measure:
  • LV end-systolic dimension (LVESD)
  • LV end-diastolic dimension (LVEDD)
• Prolonged volume overload can lead to LV systolic dysfunction.

Left Atrial Size:

• Significant MR causes LA dilation.
• However, LA dilation may also result from hypertension, diastolic dysfunction, or atrial arrhythmias.
• A normal LA size generally excludes severe chronic MR.

Pulmonary Venous and Right Heart Assessmen

Pulmonary Venous Flow:

• Severe MR may result in retrograde flow into pulmonary veins.
• Can occasionally be demonstrated with Doppler.

Pulmonary Hypertension:

• Chronic MR may elevate pulmonary artery pressures.

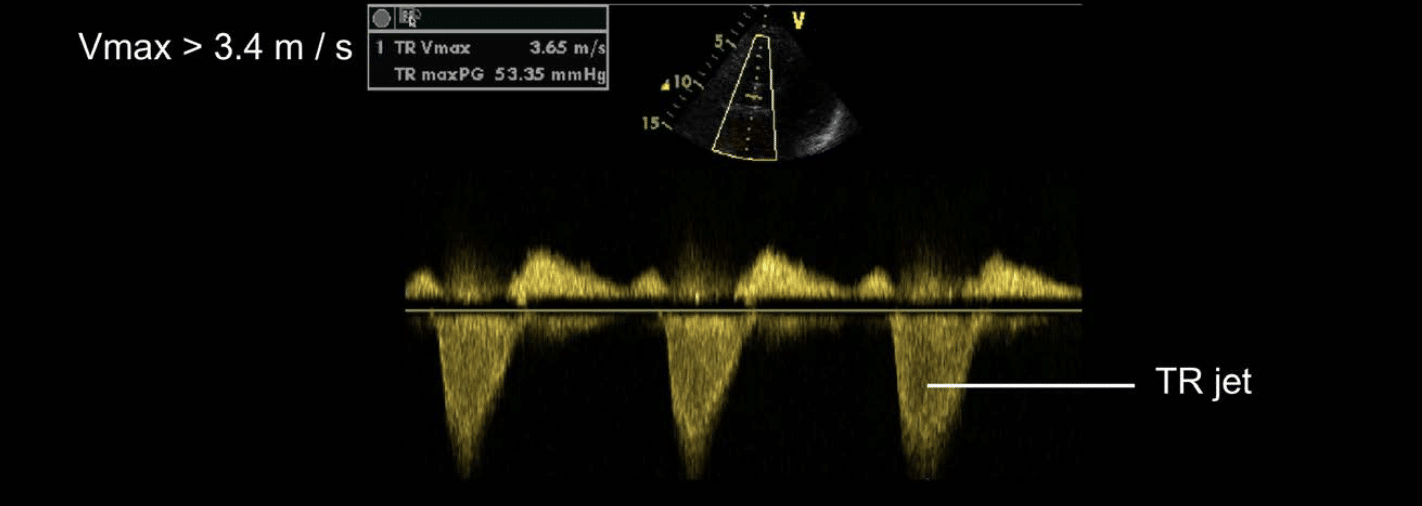

• Assess tricuspid regurgitation jet via continuous wave Doppler.
  • TR jet velocity > 3.4 m/s suggests pulmonary hypertension.

RV Function:

• Always assess right ventricular size and function, particularly in the presence of elevated pulmonary pressures.

---

Summary Approach to MR Evaluation

Always consider clinical context and integrate findings from multiple views for a comprehensive report.

• Use colour Doppler in all key views.
• Localize and characterize the regurgitant jet (central vs. eccentric).
• Analyze spectral Doppler signal density and timing.
• Measure LV and LA dimensions and assess global function.
• Evaluate pulmonary pressures and coexistent tricuspid regurgitation.

---

Quantifying mitral regurgitation based on colour imaging

Once mitral regurgitation (MR) is identified, the next step is to determine severity using a grading scale of mild, moderate, or severe. An integrated approach is essential—no single technique is perfect.

Limitations of Jet Area Measurement

• Regurgitant jet area (absolute or indexed to LA size) is not recommended due to:
  • High dependence on machine settings
  • Influence of jet direction and regurgitation mechanism
  • Inaccuracy with colour gain adjustments

Recommended Quantitative and Semi-Quantitative Methods

Two widely used and relatively accessible techniques:

1. Vena Contracta Width – Semi-quantitative
2. PISA Method (Proximal Isovelocity Surface Area) – Quantitative

1. Vena Contracta Measurement

Overview:

• Simple and quick
• Useful in differentiating mild from significant MR
• Performed in parasternal long-axis view

Imaging Setup:

• Zoom in on the mitral valve
• Colour Doppler Nyquist limit: ~50–60 cm/s
• Colour box small, centred on leaflet tips

Measurement Technique:

• Identify narrowest diameter of flow on atrial side of the valve
• Measure using calipers on a frame-by-frame loop review

Interpretation:

• < 3 mm → Mild MR
• > 7 mm → Severe MR
• 3–7 mm → Requires further quantification (e.g., PISA)

2. PISA (Proximal Isovelocity Surface Area) Method

Principle:

• Based on hemispheric convergence of flow proximal to the regurgitant orifice
• Uses aliasing velocity and radius to calculate regurgitant flow rate, ROA, and regurgitant volume

Imaging Technique:

• Zoomed view of MR flow convergence
• Adjust colour Doppler scale to ~15–40 cm/s to create aliasing hemisphere
• Measure radius (r) of first aliasing shell

Key Equation:

• Flow rate at aliasing hemisphere:

Use Doppler to measure:

• v_MR = peak MR jet velocity (from CW Doppler)
• VTI_MR = velocity-time integral of the MR jet

Calculated Parameters

A. Regurgitant Orifice Area (ROA):

Interpretation:

• < 20 mm² → Mild MR
• ≥ 40 mm² → Severe MR

B. Regurgitant Volume (RV):

Interpretation:

• < 30 mL/beat → Mild MR
• ≥ 60 mL/beat → Severe MR

Summary Table

Parameter	Mild MR	Severe MR
Vena Contracta Width	< 3 mm	≥ 7 mm
ROA	< 20 mm²	≥ 40 mm²
Regurgitant Volume (per beat)	< 30 mL	≥ 60 mL

Practical Notes

• Image optimization (zoom, gain, colour scale) is crucial for accurate measurement.
• Use multiple techniques for confirmation—especially important in:
  • Eccentric jets
  • Poor image quality
  • Confounding atrial or ventricular abnormalities

---
