Echo basics: Prosthetic Valve

Recognizing the Variety of Prosthetic Valves

Overview of Valve Replacement Types

Valve replacement options can be categorized by construction into three primary types:

• Bioprosthetic valves
• Mechanical valves
• Homografts

Bioprosthetic (Tissue) Valves

• Constructed from animal tissue (xenografts), most commonly:
  • Porcine aortic valves
  • Bovine pericardial tissue
• Mimic native valve anatomy:
  • Leaflets shaped like normal valve leaflets
  • Attached to a support ring
  • Stented designs have supporting struts at commissures
  • Stentless options are available but less common
• Most widely used in valve replacement

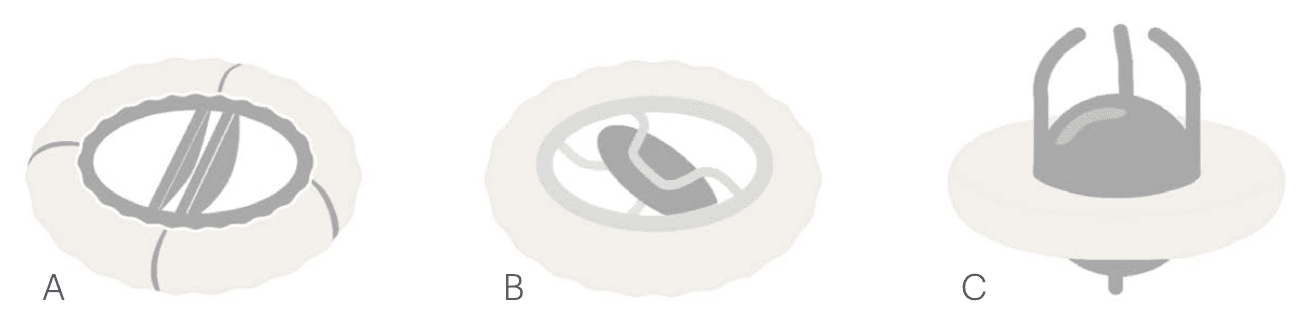

Mechanical Valves

• Durable, long-lasting valves with varied historical designs
• Most common type in use today: bileaflet mechanical valve
  • Composed of two hinged semicircular discs
  • Blood flows through three orifices:
    • Two outer crescent-shaped openings
    • One smaller central passage
• Older models may still be encountered:
  • Tilting disc valves
  • Ball and cage valves

Homograft Valves

• Constructed from cryopreserved human valves
  • Donor-derived tissue post-mortem
• Typically used for semilunar valve replacement (e.g., aortic or pulmonary)
• Offer good hemodynamic performance and resistance to infection

Advances in Valve Implantation Techniques

• Open-heart surgery was historically the only option for valve replacement
• Transcatheter Aortic Valve Implantation/Replacement (TAVI/TAVR) is now widely used in eligible patients

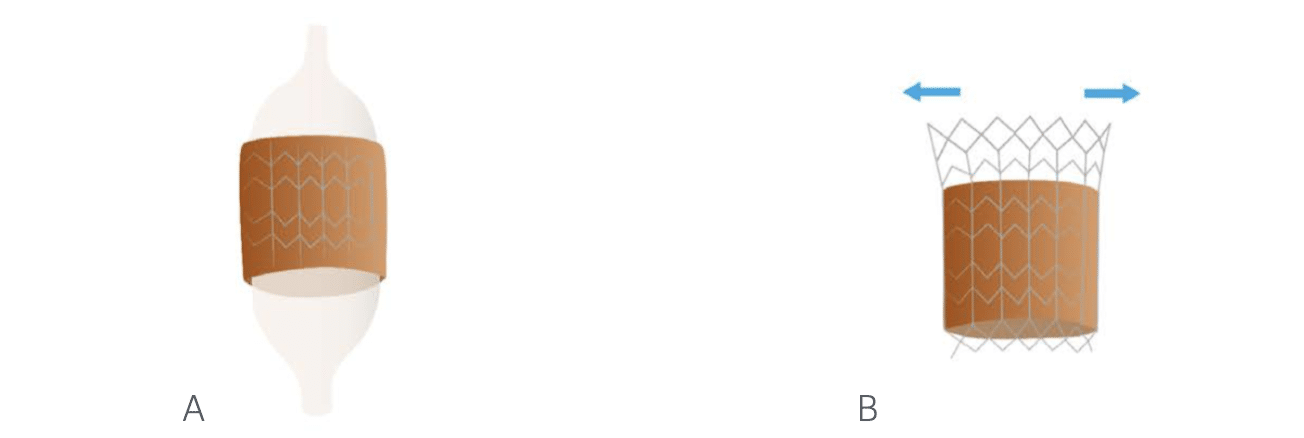

Types of Transcatheter Valves

1. Balloon-expandable valves:
   • Made from bovine tissue
   • Mounted on a cobalt-chromium metal frame
2. Self-expanding valves:
   • Constructed from porcine or bovine pericardial tissue
   • Contained within a nitinol (nickel-titanium) wire mesh frame

---

What Can Go Wrong with Prosthetic Valves?

Structural Valve Deterioration

• Mechanical valve failure is rare due to robust design.
• Bioprosthetic valves:
  • Gradual degeneration of leaflet tissue can occur.
  • Leads to reduced pliability, resulting in:
    • Stenosis
    • Regurgitation

Annular and Sewing Ring Complications

• Changes in the valve annulus over time may affect the sewing ring.
• Suture dehiscence can occur, causing paravalvular regurgitation.
• Valve rocking on imaging is a serious sign, indicating potential dehiscence.

Thrombus Formation

• Mechanical valves are associated with a high risk of thrombus formation:
  • Risk of embolic events
  • Risk of valve dysfunction
• Recent evidence suggests bioprosthetic valves may also develop thrombi.

Infective Endocarditis

• A serious complication of prosthetic valves.
• May present with vegetations similar to native valves.
• Subtle infections may localize to the sewing ring:
  • Vegetations may not be visible.
  • Look for:
    • Paravalvular regurgitation
    • Loss of valve fixation (“rocking valve”)

Pannus Formation

• Overgrowth of fibrous and endothelial tissue around the valve.
• Can impair valve function similarly to thrombus.
• Occurs more commonly in mechanical valves.

Patient-Prosthesis Mismatch

• Occurs when the prosthetic valve is too small relative to patient body size.
• Even a normally functioning valve may:
  • Fail to meet physiological demand
  • Lead to increased transvalvular gradients
• Always a factor to some degree in mechanical and tissue valves due to:
  • Sewing ring
  • Occluders
  • Stents
• Significant clinical impact only if mismatch is severe.

---

Assessing the Function of Prosthetic Valves

General Considerations

• Echocardiography is central to evaluating prosthetic valve function but is technically challenging.
• Artifact and acoustic shadowing commonly limit visualization.
• Knowledge of:
  • Valve type and size
  • Expected Doppler values
  • Reference normal ranges
    is essential for accurate interpretation.
• A baseline postoperative echocardiogram should be performed to:
  • Confirm normal function
  • Provide reference values for future comparison

Visual Assessment

• Aortic prosthetic valves:
  • Should appear stable with visible, full cusp/occluder motion

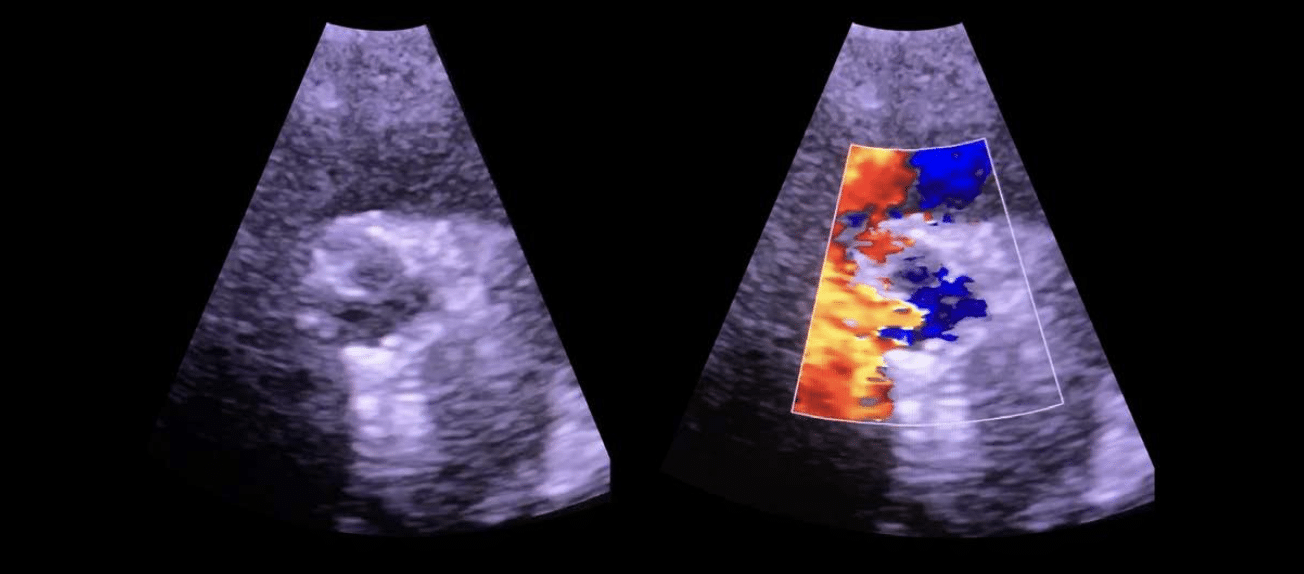

  • Use color Doppler to confirm flow occupies the orifice during systole
• Abnormal findings may include:
  • Thickened or immobile cusps/occluders
  • Limited visualization due to acoustic interference

Doppler Assessment of Obstruction

• Aortic valve prosthesis:
  • Peak velocity ≥ 4.0 m/s suggests severe obstruction
  • Mean gradient ≥ 35 mmHg suggests severe obstruction
• Mitral valve prosthesis:
  • Peak velocity > 2.5 m/s is suspicious
  • Pressure half-time > 200 ms suggests obstruction
• Tricuspid valve prosthesis:
  • Peak velocity > 1.6 m/s indicates possible obstruction
• Pulmonary valve prosthesis:
  • Peak velocity > 3.2 m/s indicates possible obstruction

Assessment of Regurgitation

• Mechanical valves:
  • Regurgitation is common and expected
  • Each valve has a distinct regurgitant jet pattern
  • Bileaflet valves show multiple small jets on closure
• Bioprosthetic valves:
  • Trivial regurgitation may be normal
  • More than trivial regurgitation is suspicious
  • Assess leaflet motion and origin of regurgitation:
    • Intravalvular vs. paravalvular

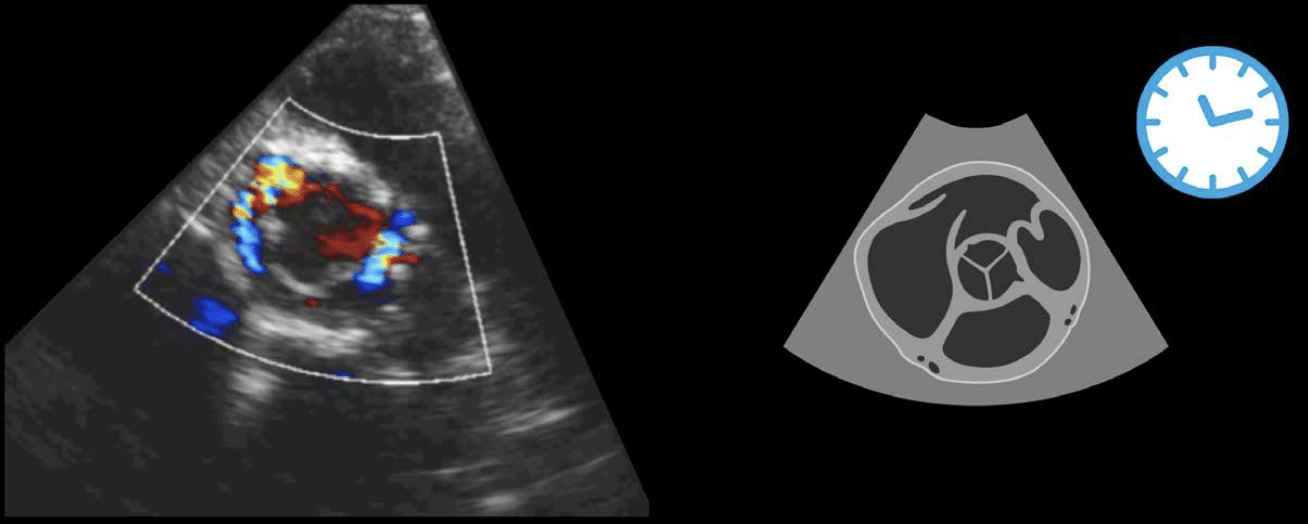

• Clock face analogy (from short-axis view) is useful for:
  • Describing paravalvular leak location
  • Enhancing consistency in serial follow-up

---

Examining Transcatheter Valves

Indications and Pre-Procedural Assessment

• TAVR (TAVI) is indicated in symptomatic patients with aortic stenosis who are unsuitable for surgery.
• Transthoracic echocardiography (TTE) is the primary tool for:
  • Pre-procedural assessment
  • Post-procedural follow-up

Pre-Procedural Echo Requirements:

• Determine whether the native valve is bicuspid or tricuspid
  • Bicuspid valves are associated with higher risk of post-procedural aortic regurgitation
• Identify calcification in:
  • The valve
  • LVOT
  • Proximal aorta (risk: dissection)
• Measure:

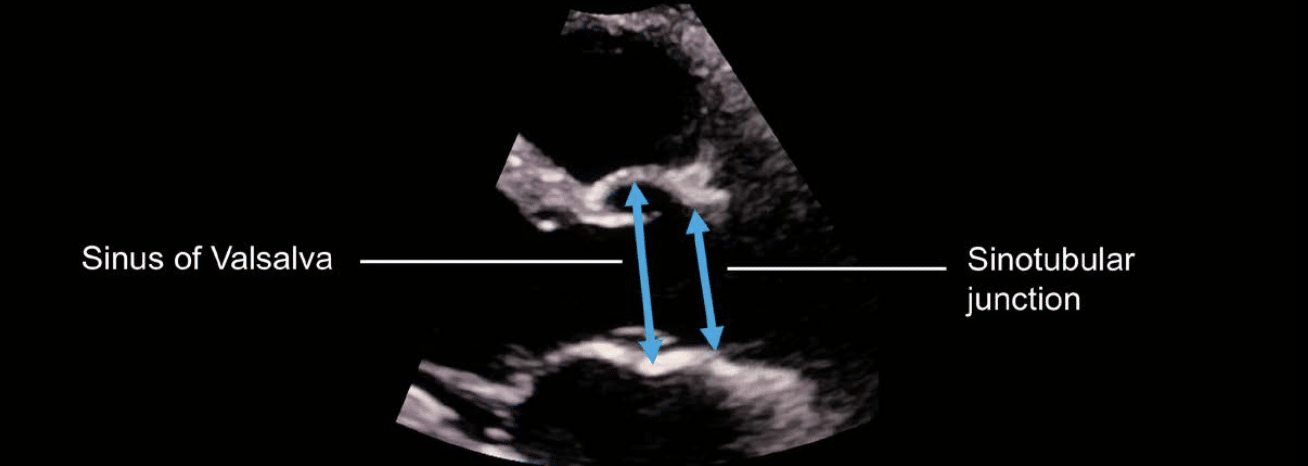

  • Sinus of Valsalva and sinotubular junction diameters (in diastole)
  • Basal septal thickness (important for valve positioning)
• Assess:
  • Left ventricular function (even severe dysfunction is not a contraindication)
  • Mitral regurgitation (may improve post-TAVR, but persistent MR increases mortality)
  • Tricuspid regurgitation and right heart function (unlikely to improve and linked to worse prognosis)

Post-TAVR Follow-Up

• Routine surveillance imaging recommended at:
  • 30 days post-implant
  • 1 year post-implant
  • Annually thereafter

Follow-Up Echo Focus:

• Visual inspection of:
  • Valve position and stability
  • Leaflet appearance and movement
• Assessment of:
  • Left ventricular function
  • Severity of mitral regurgitation

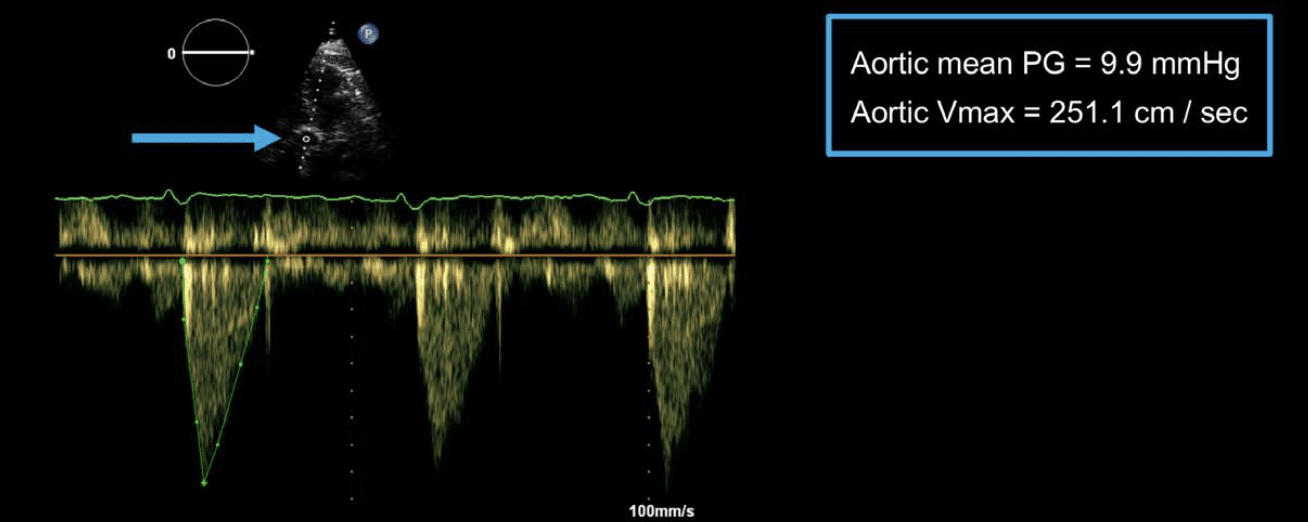

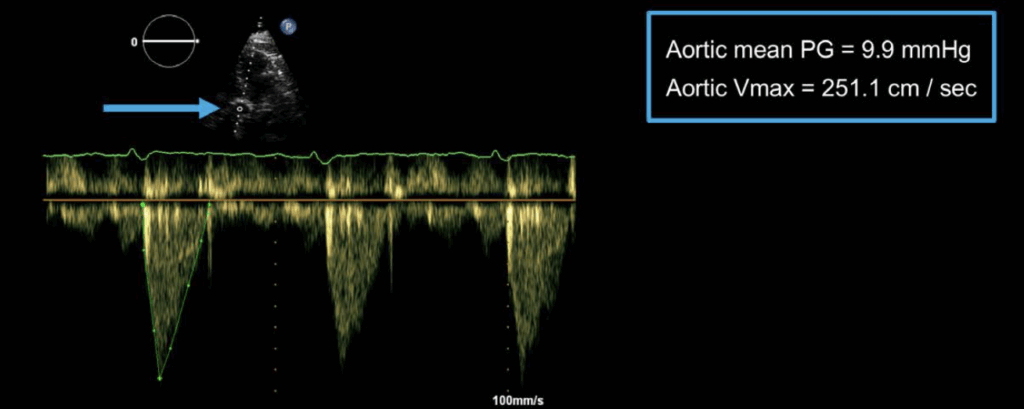

• Doppler interrogation to:
  • Record peak velocity and mean pressure gradient
  • Calculate effective orifice area
    • Ensure pulsed wave Doppler sample is placed below the valve stent (not within it) to avoid underestimation

Complications and Regurgitation

• Device migration: must confirm stable position
• Structural failure: rare with current TAVR devices
• Paravalvular regurgitation:
  • Common and associated with long-term outcomes
  • Often multiple jets, difficult to quantify due to acoustic shielding
  • Assess using:
    • Number of jets
    • Vena contracta width
    • Jet width as % of LVOT
    • Flow reversal in the aortic arch

---
