Echo basics: Pulmonary Valve

Recognizing an Abnormal Pulmonary Valve

Overview

• Pulmonary valve abnormalities are most often due to congenital heart disease
• When identified in adults, they may reflect:
  • Childhood surgical interventions
  • Balloon dilatation procedures
• Less common adult causes include:
  • Infective endocarditis
  • Cardiac carcinoid disease
  • Rheumatic disease

Echocardiographic Views for Pulmonary Valve Assessment

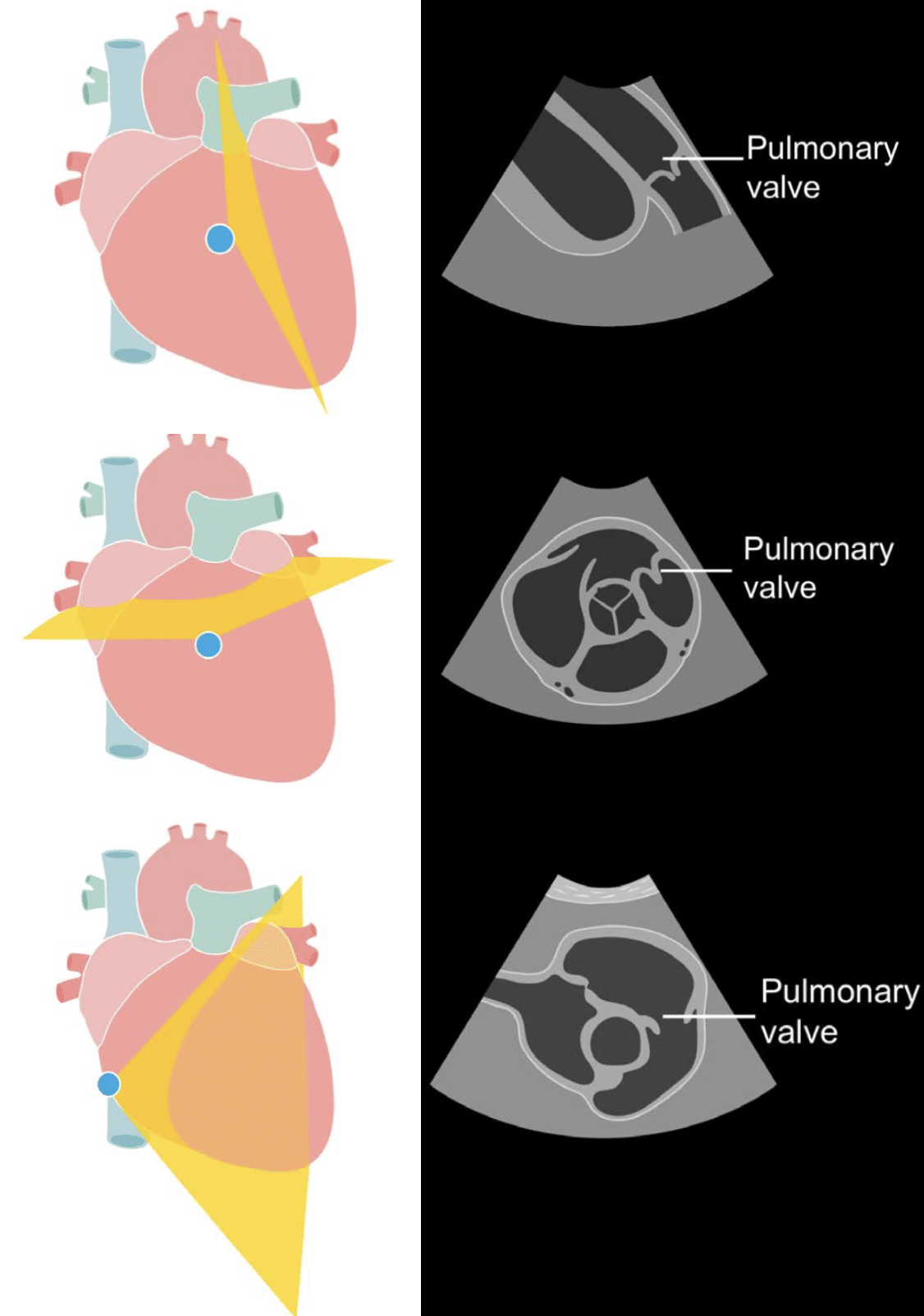

• Three standard transthoracic views:
  • Parasternal long-axis right ventricular outflow tract (RVOT) view
  • Parasternal short-axis view at the aortic valve level
  • Subcostal short-axis approach
• Challenges:
  • Only two valve leaflets typically visible on transthoracic echo
  • Lung tissue interference limits imaging quality
  • Valve anatomy difficult to confirm; leaflet identification often uncertain

Visual Features and Interpretation

• Pulmonary valve leaflets:
  • Generally thinner than aortic valve leaflets (due to lower right-sided pressures)
• Visual inspection alone is unreliable, especially for:
  • Determining the number of cusps
  • Diagnosing mild forms of disease

Clues Suggestive of Pulmonary Valve Stenosis

• Thickened cusps seen on 2D echo may raise suspicion
• M-mode echocardiography through the RVOT:
  • May show increased signal density (brighter, thicker leaflet reflections)

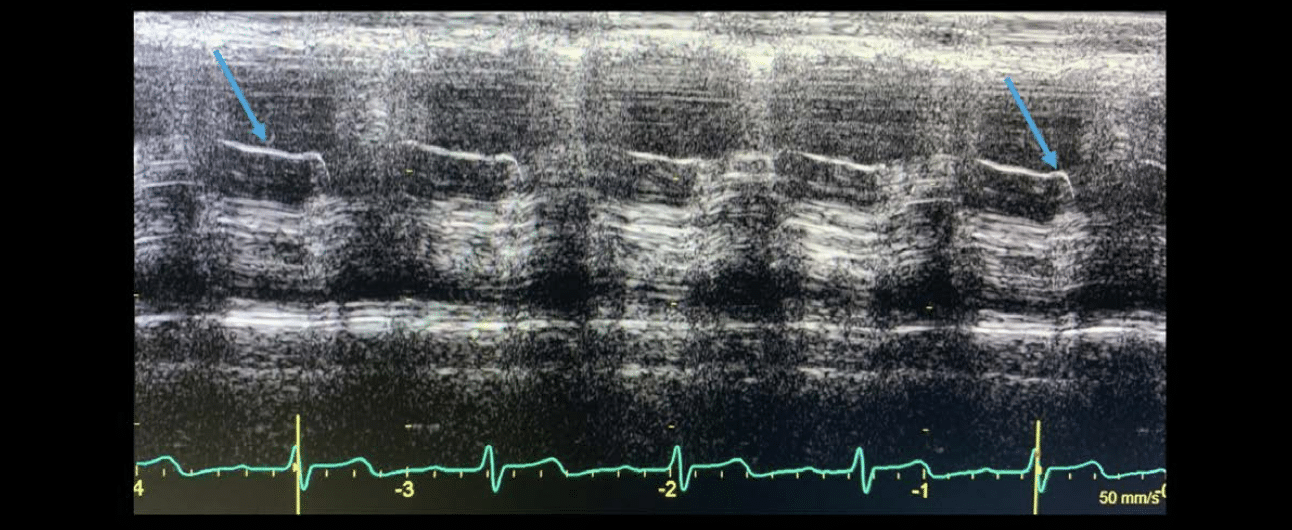

  • Increased ‘a wave’ notch may be visible:
    • Occurs just before the QRS complex on ECG
    • Suggests increased right atrial contraction force
    • Indicates resistance from stenotic pulmonary valve

---

Grading Pulmonary Regurgitation

Doppler Assessment

• Use all three acoustic windows:
  • Parasternal long-axis RVOT view
  • Parasternal short-axis at aortic valve level
  • Subcostal short-axis view
• Employ both:
  • Colour flow Doppler
  • Spectral (continuous wave) Doppler

Normal vs Pathological Pulmonary Regurgitation

• Physiological/Functional regurgitation (common in healthy subjects):
  • Narrow, short jet (< 10 mm)

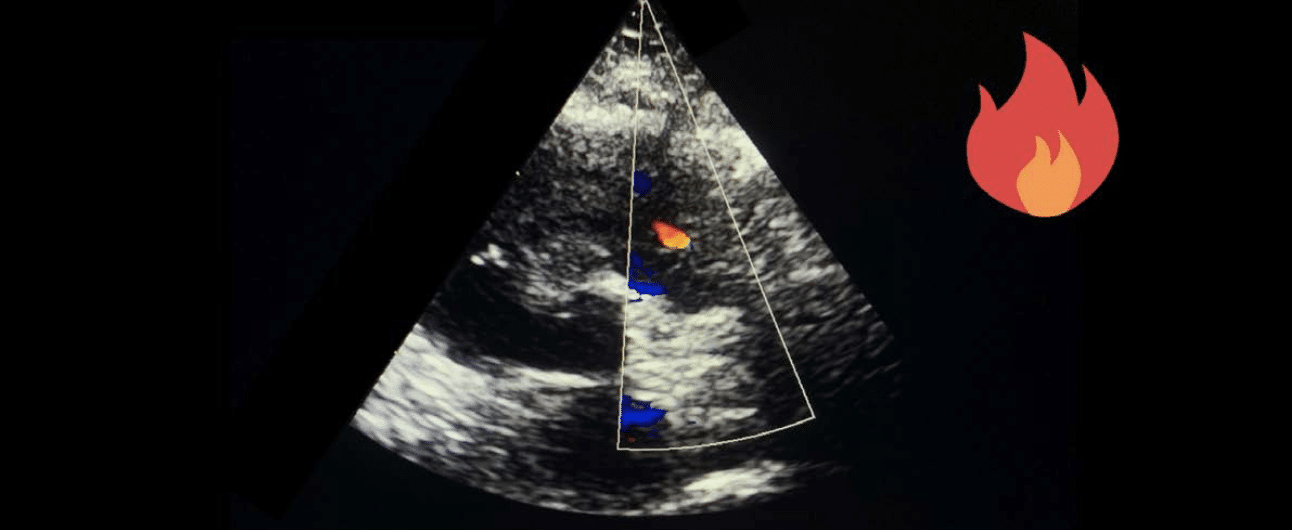

  • Red flame-like appearance
  • Directed from pulmonary valve toward the right ventricle during diastole
• Pathologic regurgitation is often associated with:
  • Pulmonary hypertension
  • Valve or outflow tract abnormalities

Colour Doppler Finding

• Key indicators of significant regurgitation:
  • Wide jet origin just below the pulmonary valve
  • Jet width covering ≥ 60% of the right ventricular outflow tract

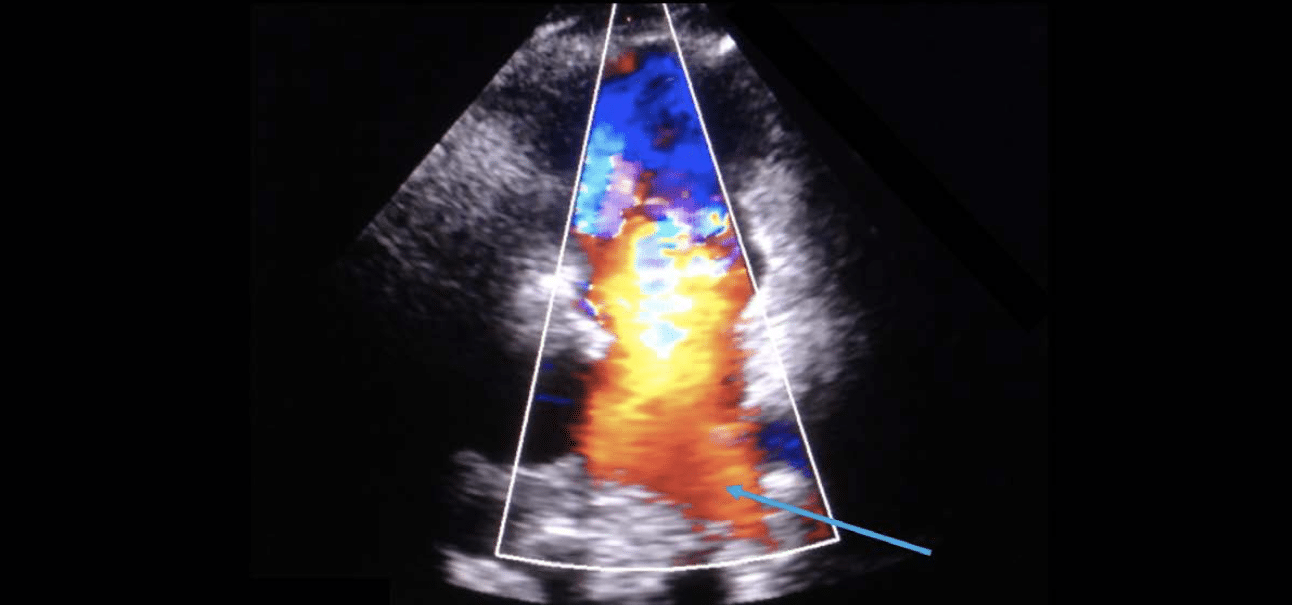

  • Colour flow reversal in pulmonary arteries (suggests severe regurgitation)
• Caution:
  • Jet width may be artifactually increased due to viewing angle
  • Severe regurgitation may show a short-duration jet due to rapid pressure equalization

Spectral Doppler Interpretation

• Parasternal short-axis view provides best alignment for continuous wave Doppler
• Waveform characteristics:
  • Mild regurgitation:

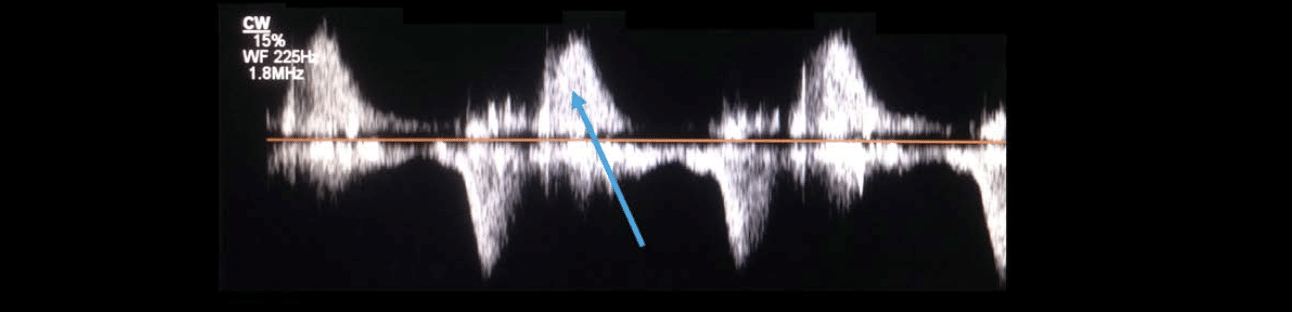

    • Weak, faint Doppler signal
    • Long pressure half-time
  • Severe regurgitation:
    • Dense signal with steep deceleration slope
    • Pressure half-time < 100 ms (especially in congenital heart disease)

Limitations of Quantification

• Vena contracta and PISA (flow convergence) methods:
  • Not validated for pulmonary valve assessment
• Rely primarily on:
  • Qualitative Doppler analysis
  • Jet width proportions
  • Flow reversal patterns

---

Assessing Pulmonary Valve Stenosis

Imaging Approach

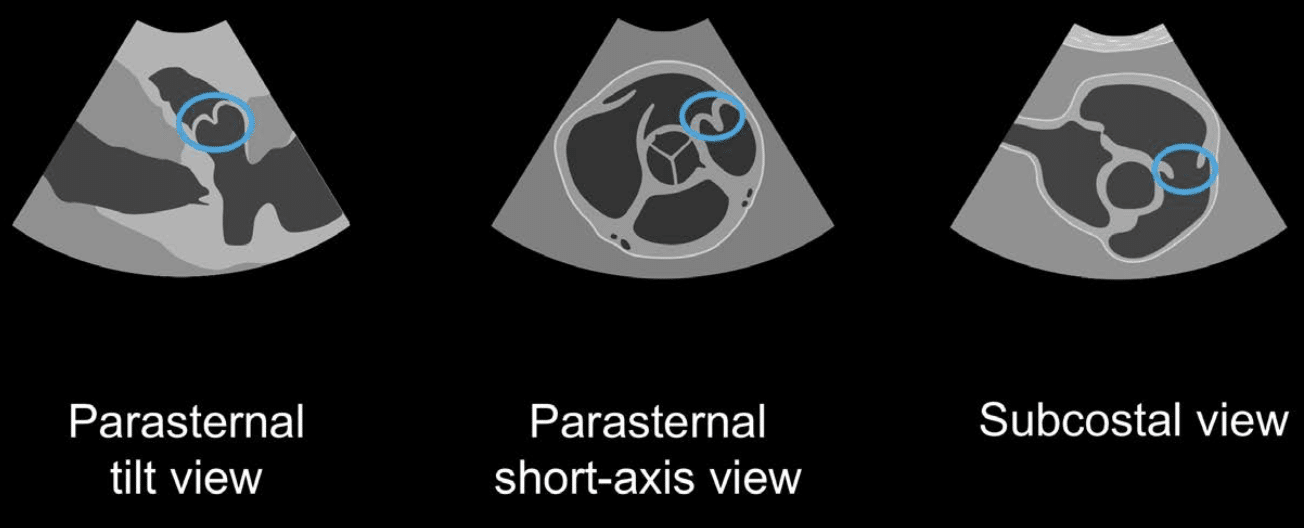

• Use all available transthoracic views to assess the pulmonary valve and right ventricular outflow tract (RVOT)
• Employ both:

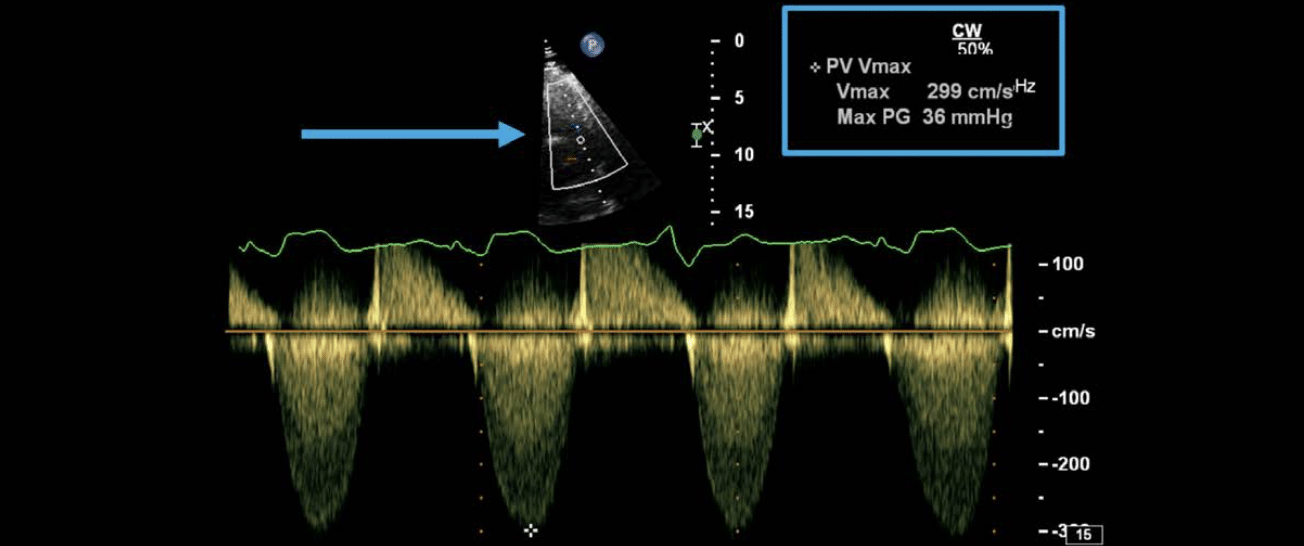

  • Continuous wave Doppler: to capture maximum antegrade velocities
  • Pulsed wave Doppler: to localize the site of obstruction
  • Colour Doppler: to visualize flow acceleration and narrowing

Doppler Velocity Thresholds

• Normal pulmonary valve velocity: ~ 1.0 m/s
• Mild stenosis: Peak velocity < 3.0 m/s
• Severe stenosis: Peak velocity > 4.0 m/s

Use the simplified Bernoulli equation to calculate the pressure gradient from peak velocity

ΔP = 4 × (V²)

Differentiating Valve vs. Outflow Tract Stenosis

• Be aware that increased velocity may not always originate from the valve itself:
  • Subvalvular stenosis (e.g. RVOT narrowing)
  • Supravalvular stenosis (e.g. pulmonary artery stenosis)
• Use pulsed wave Doppler to:
  • Identify the point where velocity increases (“step-up” point)
  • Help differentiate valve-level stenosis from other causes
• Colour Doppler can:
  • Assist in localizing the anatomical level of the narrowing
  • Demonstrate turbulent or accelerated flow across narrowed segments

---

Managing a Patient with Pulmonary Valve Disease

Intervention Options

• Balloon Pulmonary Valvuloplasty
  • First-line treatment for moderate to severe isolated pulmonary stenosis
  • Safe and effective for reducing valve gradient and improving symptoms
• Surgical Valvotomy
  • Considered if balloon valvuloplasty is unsuitable
  • Appropriate when valve and annulus are not significantly malformed
• Pulmonary Valve Replacement
  • Required when:
    • Severe malformation of valve or annulus
    • Significant regurgitation or right ventricular dysfunction post-repair

Follow-Up and Monitoring

• Mild native pulmonary stenosis:
  • Typically does not require intervention
  • Regular echocardiographic follow-up is sufficient
• Post-intervention surveillance:
  • Required for all patients who underwent:
    • Balloon valvuloplasty
    • Surgical repair
  • Focus of follow-up:
    • Pulmonary regurgitation
    • Right ventricular size and function

Pulmonary Regurgitation After Congenital Repair

• Tetralogy of Fallot repair:
  • Pulmonary regurgitation is a common late complication
  • May lead to:
    • Right ventricular dilation
    • Arrhythmias
    • Tricuspid regurgitation
    • Impaired exercise tolerance
• Surgical valve replacement should be considered when:
  • Moderate/severe regurgitation is symptomatic
  • Right ventricular dilation and dysfunction are present
  • Associated arrhythmias or significant tricuspid regurgitation occur

Timing of Valve Replacement

• Evidence for ideal timing is not definitive
• Goal: Prevent irreversible right ventricular dysfunction
• Valve replacement may stabilize or improve RV function if performed before advanced failure

---
