Echo basics: Tricuspid Valve

Recognizing Abnormal Tricuspid Valves

Initial Visualization

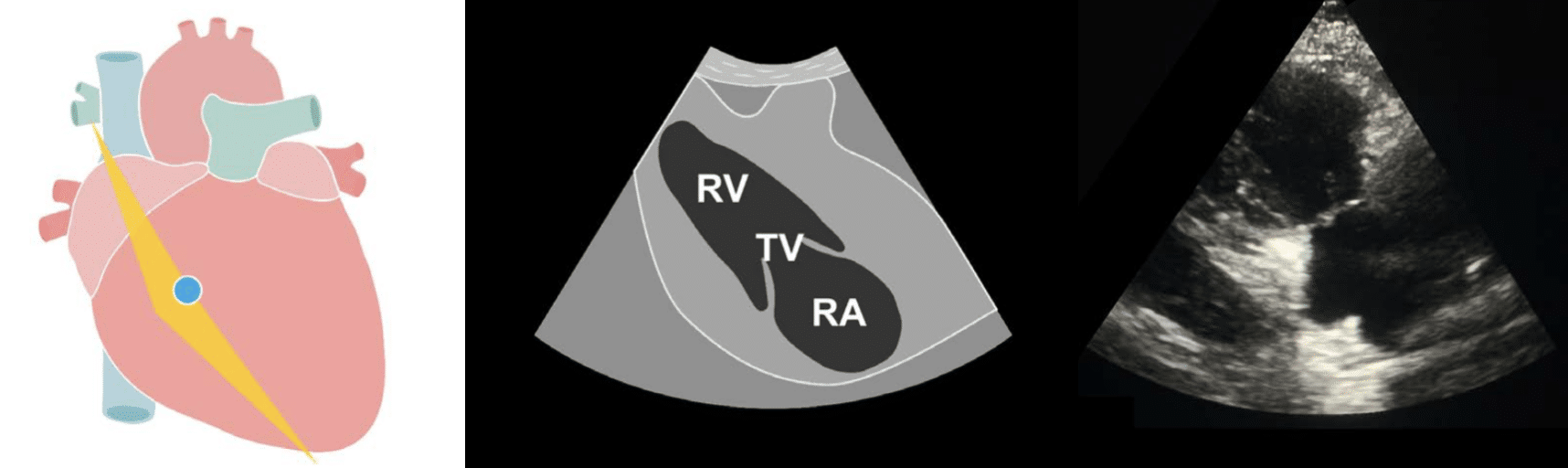

• The parasternal tilt view (from the parasternal long-axis position) is typically the first opportunity to visualize the tricuspid valve:
  • Angle the probe inferiorly and rightward (towards the patient’s right hip).
  • Brings into view: right atrium, tricuspid valve, and right ventricle.

Valve Anatomy Overview

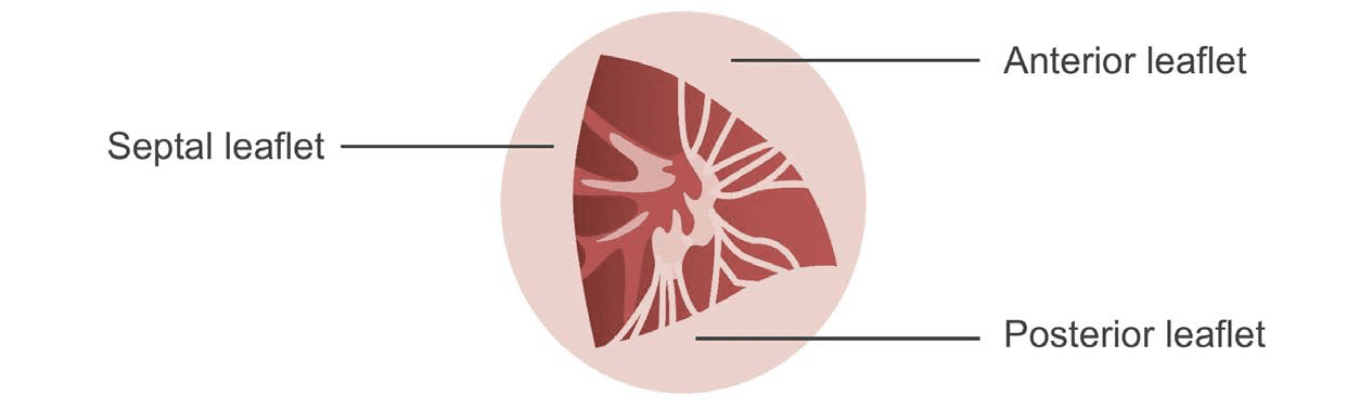

• Largest of the four valves, with three leaflets:
  • Anterior
  • Septal
  • Posterior
• Subvalvular apparatus includes:
  • Fibrous annulus
  • Chordae tendineae
  • Papillary muscles

🧠 Note: Leaflet identification is variable between views and highly dependent on transducer angulation.

Parasternal Tilt View

• Most commonly shows:
  • Anterior and septal leaflets
• Inferior angulation may reveal:
  • Anterior and posterior leaflets
• Two papillary muscles may be seen.
  • The moderator band often attaches near the anterior papillary muscle.

Parasternal Short-Axis View (at Aortic Valve Level)

• Typically shows:
  • Posterior and septal leaflets
• May occasionally show:
  • Anterior leaflet, depending on probe orientation

Apical Four-Chamber View

• Provides a clear image of:
  • Septal leaflet (adjacent to interventricular septum)
  • Free wall-attached leaflet may be anterior or posterior, depending on:
    • Probe angulation
    • Probe rotation
• The tricuspid valve annulus is:
  • Closer to the apex than the mitral valve annulus
  • Normal offset from mitral valve ≤ 10 mm

Subcostal View

• Challenging but valuable view.
• Technique:
  • Start from the subcostal four-chamber view
  • Rotate the probe 90° counterclockwise
  • Center on the right ventricle
• Goal: Short-axis “enface” view showing all three leaflets

Doppler Assessment

• Best views for Doppler interrogation:
  • Apical four-chamber
  • Parasternal tilt

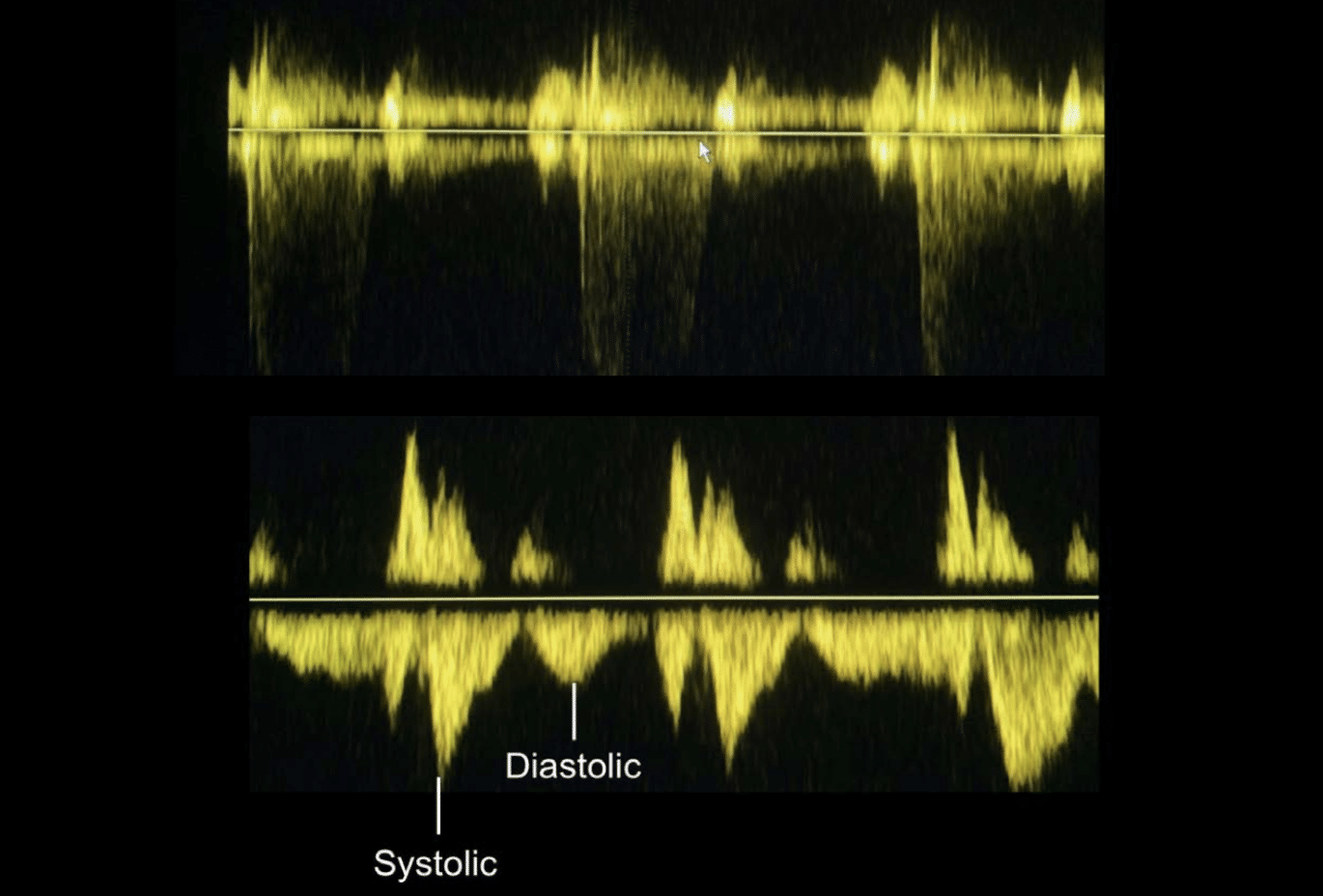

• Spectral Doppler:
  • Similar pattern to mitral inflow
  • Lower peak velocities due to:
    • Lower pressure gradient between the right atrium and right ventricle

---

Identifying and Grading Tricuspid Regurgitation

Pathophysiology

• Normal tricuspid valve function depends on the integrity of:
  • Valve leaflets
  • Subvalvular apparatus
  • Tricuspid annulus
  • Right atrium and ventricle
• Regurgitation results when one or more components are dysfunctional.

Types of Tricuspid Regurgitation

• Trivial/mild regurgitation is common and usually appears as a small, central jet.
• Organic (primary) causes:
  • Endocarditis
  • Carcinoid heart disease
  • Trauma
  • Radiation
  • Pacemaker or defibrillator leads
• Functional (secondary) causes:
  • Usually due to left-sided heart disease
  • Associated with:
    • Right-sided heart failure
    • RV dilation
    • RA dilation
    • Pulmonary hypertension
    • Tricuspid annular dilation

Imaging Evaluation Strategy

• Use multiple views (e.g., parasternal, apical, subcostal) with:
  • Colour Doppler
  • Spectral Doppler
  • Pulsed wave Doppler (esp. in hepatic veins)

Semi-Quantitative Measures

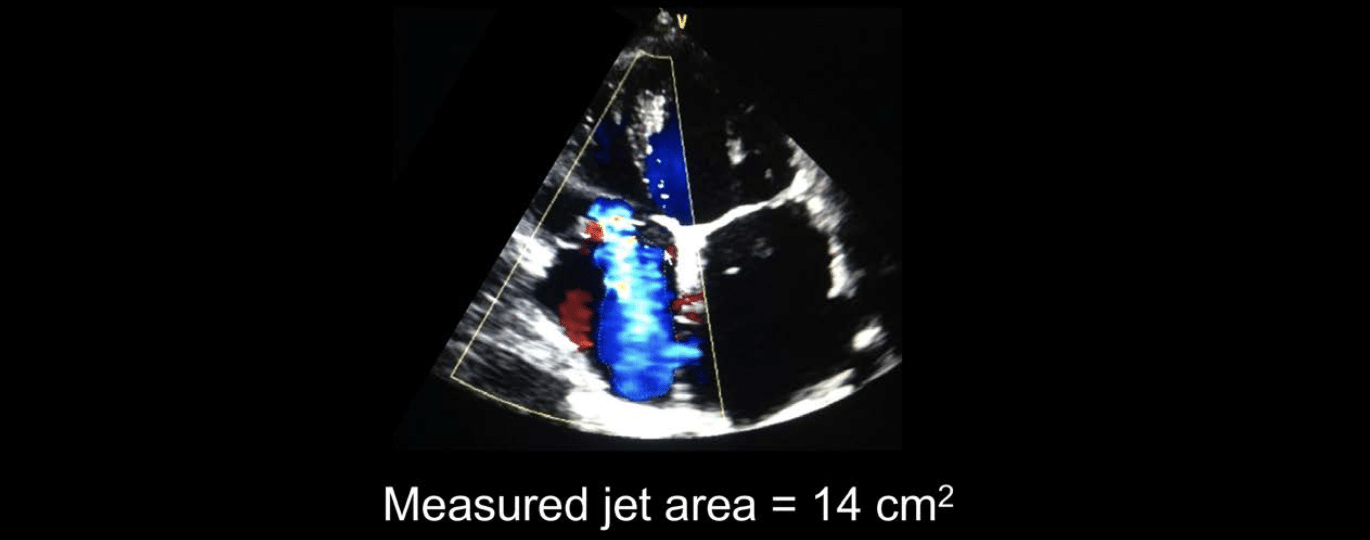

• Regurgitant jet area:
  • 10 cm² in RA suggests severe regurgitation
  • ⚠ Note: May underestimate severity when RV–RA pressure gradient is low (e.g., in torrential TR)
• Vena contracta width:
  • Measured in parasternal RV inflow or apical four-chamber view
  • 7 mm indicates severe TR

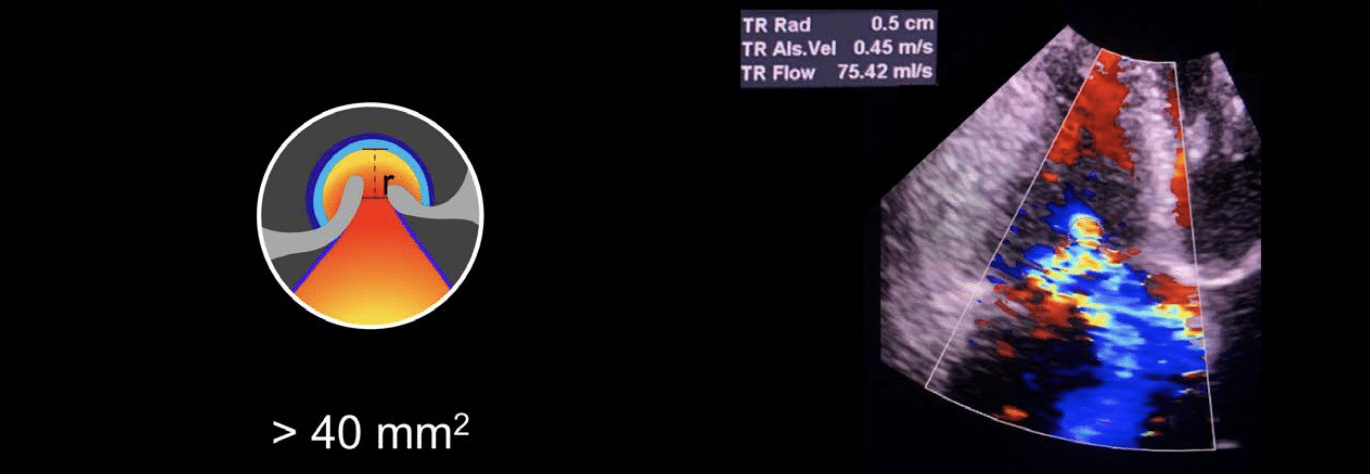

• Flow convergence (PISA):
  • Limited by low flow and non-circular orifice shape
  • EROA > 40 mm² is consistent with severe TR

Spectral Doppler Evaluation

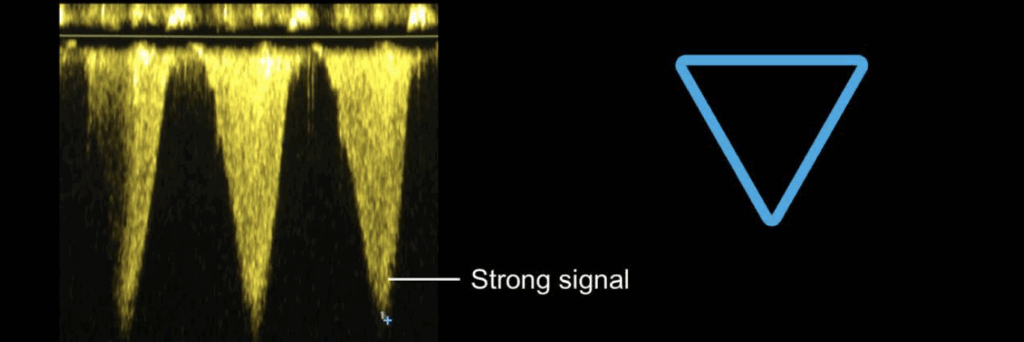

• Continuous wave Doppler:
  • Dense, triangular-shaped jet implies severe TR
• Pulsed wave Doppler in hepatic veins:
  • Systolic flow reversal is a hallmark of severe TR

Grading Summary

Parameter	Mild TR	Severe TR
Colour jet area	Small, central	> 10 cm² (may underestimate)
Vena contracta	< 7 mm	> 7 mm
Effective regurgitant orifice (EROA)	—	> 40 mm²
CW Doppler waveform	Faint	Dense, triangular
Hepatic vein flow	Normal	Systolic flow reversal

Clinical Integration

• Begin with semi-quantitative assessment
• If uncertainty remains, use quantitative methods
• Functional TR may progress; monitor with serial imaging if significant RV dilation or pulmonary hypertension is present

---

Assessing Tricuspid Valve Stenosis

Overview

• Organic tricuspid stenosis is rare but should be considered in:
  • Patients with a history of rheumatic fever
  • Especially when rheumatic mitral stenosis is also present
• Other causes of organic stenosis include:
  • Carcinoid heart disease
  • Antiphospholipid syndrome
  • Ebstein’s anomaly

Functional Tricuspid Stenosis

• May result from intracardiac thrombus or masses
• Consider in patients with cardiac devices, including:
  • Pacing leads across the tricuspid valve
  • Septal closure devices (e.g., for PFO or ASD), especially if mispositioned

Visual Inspection

• Thickened tricuspid leaflets are often difficult to visualise reliably
• However, stenosis due to device interference may be detected visually
• Use multiple views, especially apical four-chamber and subcostal windows

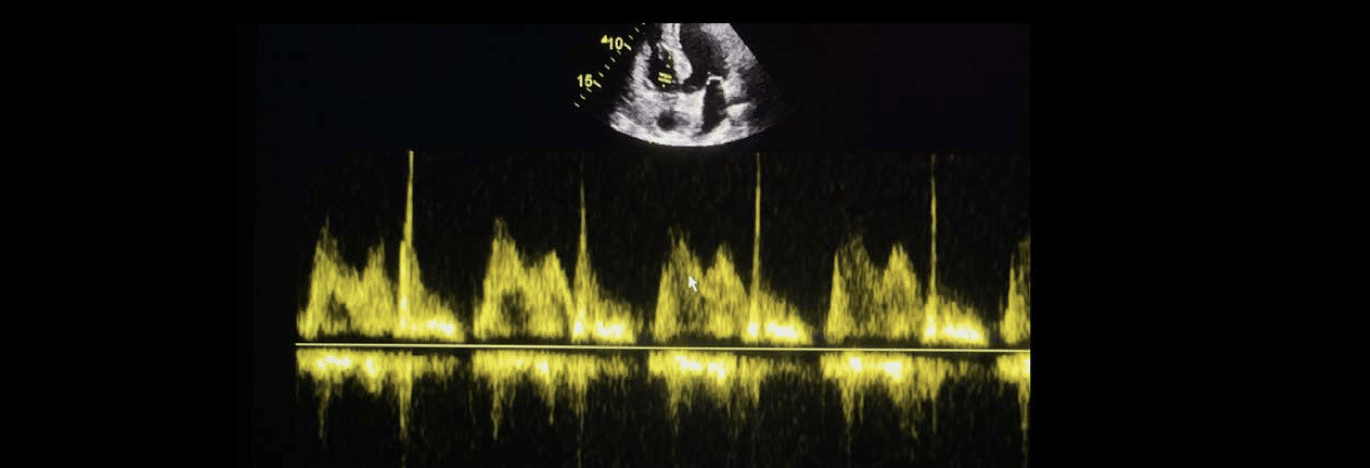

Doppler Assessment

• Continuous wave Doppler is the primary modality for hemodynamic assessment
  • Optimal imaging usually via the apical four-chamber view
  • Use to assess forward flow velocities and waveform shape

Diagnostic Criteria

• Mean pressure gradient across the tricuspid valve:
  • 5 mmHg is consistent with significant tricuspid stenosis
• Pressure half-time:
  • 190 ms suggests severe tricuspid stenosis

Summary Table

Parameter	Diagnostic Threshold
Mean pressure gradient	> 5 mmHg → Significant stenosis
Pressure half-time (PHT)	> 190 ms → Severe stenosis

---

Patient Management: Tricuspid Valve Disease

Initial Echocardiographic Assessment

• Transthoracic echocardiography (TTE) is the first-line tool to:
  • Assess valve anatomy
  • Determine severity of tricuspid regurgitation
  • Evaluate right atrial and ventricular size/function
  • Measure inferior vena cava (IVC) dimensions
  • Estimate pulmonary artery systolic pressure (PASP)
  • Perform comprehensive left heart assessment, including the mitral valve

Prognosis and Recognition

• Severe tricuspid regurgitation (TR) carries a poor prognosis if left untreated
• Under-treatment is common due to:
  • Lack of awareness about TR significance
  • Limited understanding of intervention options

Surgical and Interventional Recommendations

Tricuspid Stenosis

• Class I indication for surgical intervention when:
  • Severe tricuspid stenosis is present
  • Patient is undergoing left-sided valve surgery
• Surgery is recommended for:
  • Symptomatic patients with isolated severe tricuspid stenosis
• Percutaneous balloon commissurotomy may be considered if:
  • Severe stenosis is present without significant TR

Tricuspid Regurgitation (TR) Management

Surgical Repair

• Repair is recommended in the following scenarios:
  • Mild or greater functional TR during left-sided valve surgery, with:
    • Tricuspid annular dilation
    • Evidence of right heart failure
  • Moderate functional TR with pulmonary hypertension during left-sided valve surgery
• Repair may be considered for:
  • Symptomatic patients with severe primary TR unresponsive to medical therapy
  • Asymptomatic or minimally symptomatic patients with:
    • Severe primary TR and
    • Right ventricular dilation or dysfunction

Surgical and Transcatheter Techniques

Surgical Approaches

• Tricuspid valve repair:
  • Typically involves annuloplasty ring insertion to restore annular size and shape
• Valve replacement:
  • Bioprosthetic valves preferred over mechanical due to lower thromboembolic risk
• Limitations:
  • High perioperative mortality rates associated with tricuspid valve surgery

Transcatheter Interventions

• Rapidly evolving field due to high surgical risk in many patients
• Current percutaneous approaches include:
  • Valve replacement
  • Annuloplasty techniques
  • Coaptation devices
• Challenges:
  • Anatomical complexity of tricuspid valve
  • Lack of robust anchoring structures
  • Large annular dimensions

---
