CT Case 097
An 85-year-old woman presents with anterior pelvic pain following a mechanical fall
A pelvic x-ray is performed
Describe and interpret the Pelvic X-ray
There are right sided superior and inferior pubic rami fractures.
Several hours later, while awaiting admission to the ward, this patient becomes haemodynamically unstable and describes worsening lower pelvic pain.
She is sent for CT scan of the abdomen and pelvis.

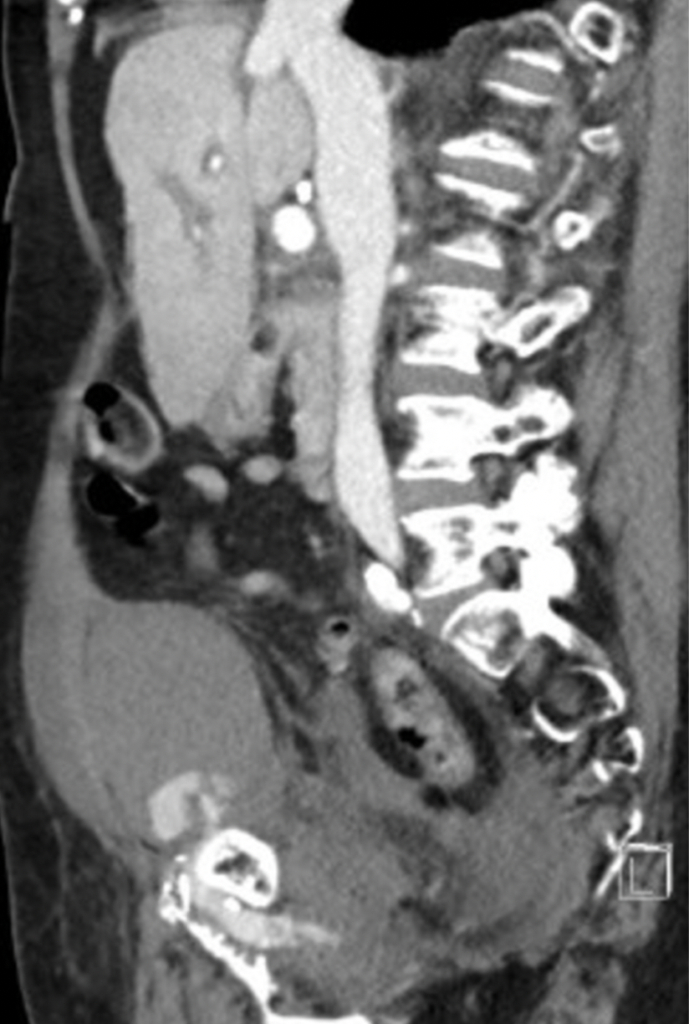

Describe and interpret the CT scan

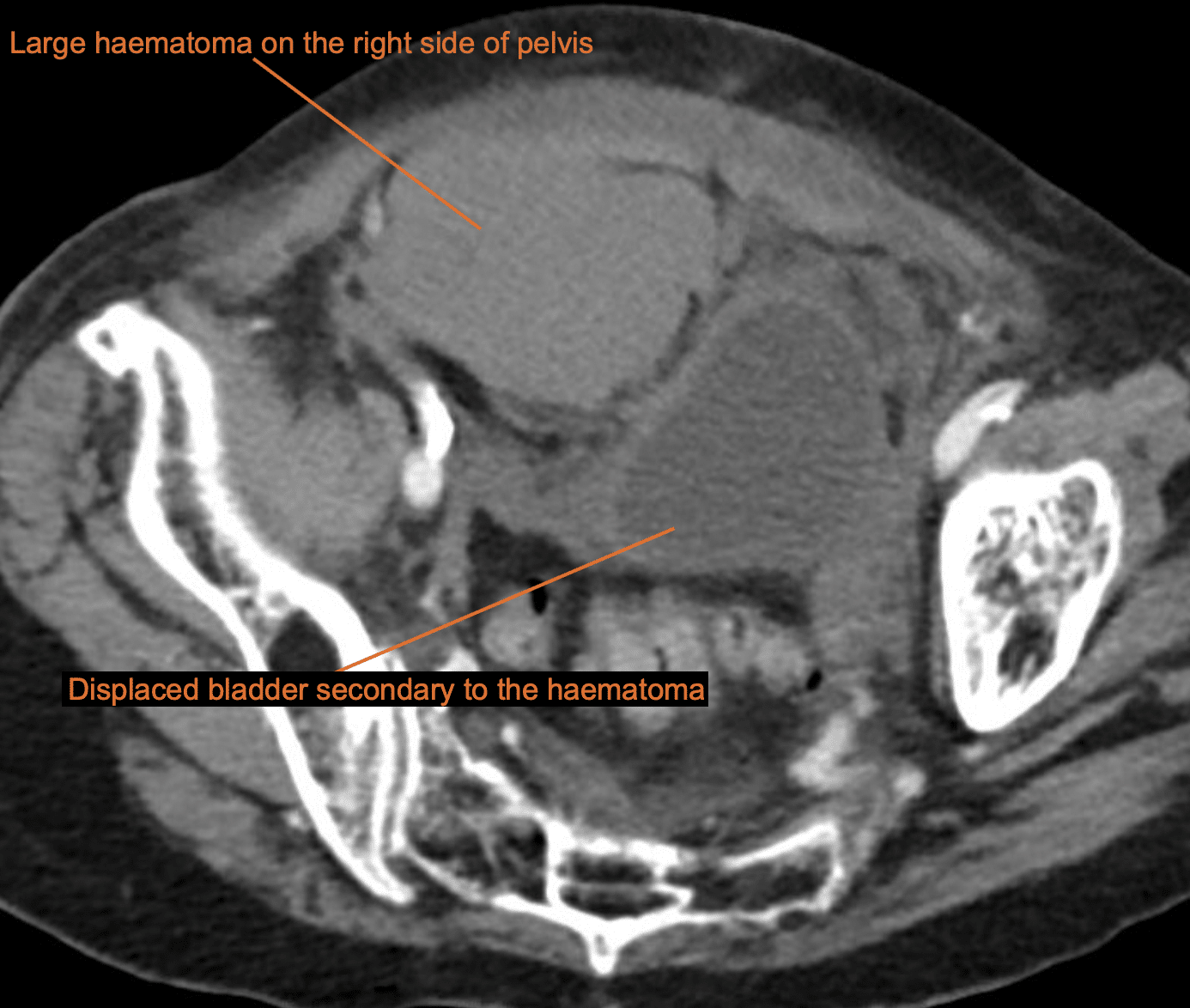

There is a large haematoma on the right side of pelvis.
On this arterial phase scan there is a focus of contrast extravasation seen within the haematoma, just adjacent to the superior pubic rami fracture. This indicates active arterial bleeding in this location.
Clinical Pearls
This is a rare and tricky diagnosis. We typically think of pubic rami fractures as benign fractures that can be managed conservatively.
However, this completely changes in the context of patients with the ‘Corona Mortis’ anatomical variant.
Corona mortis is Latin for ‘crown of death’. It is a common vascular anastomosis variant between the obturator artery and either the external iliac artery or the inferior epigastric artery.
This anastomosis is located posterior to the superior pubic rami.
In patients with this anatomical variant, a fracture of the superior pubic rami can cause arterial injury and rapid haemorrhagic shock.
While it can be a tricky diagnosis, it should be considered in patients who have superior rami fracture along with significant lower abdominal pain, difficulty voiding or clinical signs of hypoperfusion.
Those at higher risk are the elderly, and those anticoagulated with warfarin, a NOAC or aspirin.
References
- Kong WM, Sun CK, Tsai IT. Delayed presentation of hypovolemic shock after a simple pubic ramus fracture. Am J Emerg Med. 2012 Nov;30(9):2090.e1-4.
- Perandini S, Perandini A, Puntel G, Puppini G, Montemezzi S. Corona mortis variant of the obturator artery: a systematic study of 300 hemipelvises by means of computed tomography angiography. Pol J Radiol. 2018
