Köhler line

The line follows the medial pelvic contour from the ilium, passing tangentially along the medial acetabular region to the medial border of the ischium. In the normal hip, both the medial acetabular wall and femoral head remain lateral to the ilioischial line.

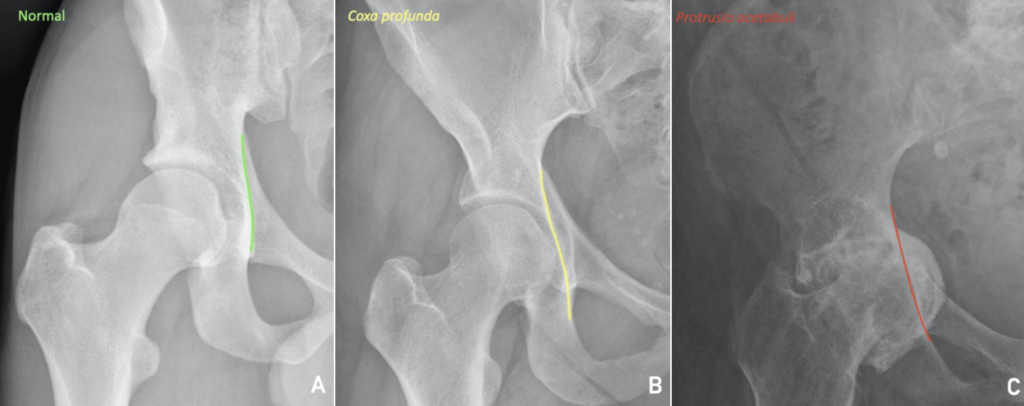

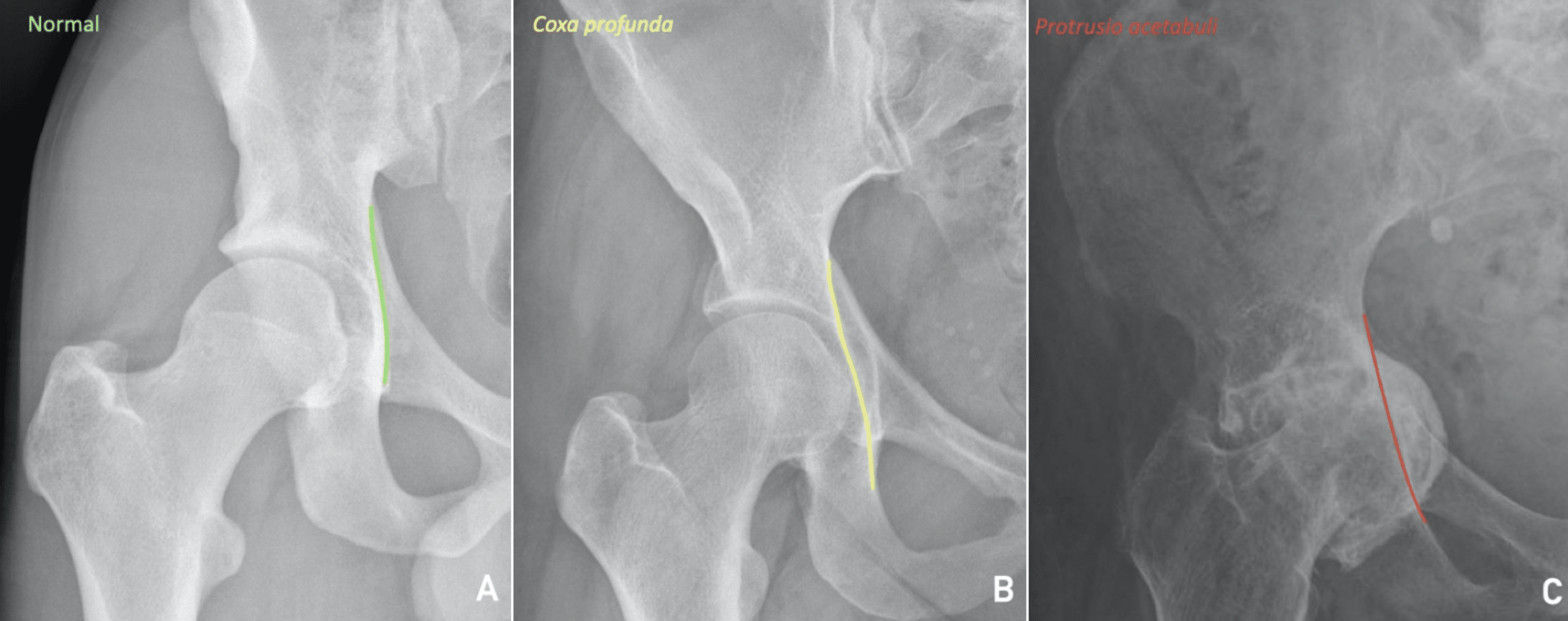

It can be used to distinguish coxa profunda from protrusio acetabuli:

• Normal: the medial acetabular wall and femoral head lie lateral to Köhler line.
• Coxa profunda: the medial acetabular wall projects medial to the line, while the femoral head remains lateral.
• Protrusio acetabuli: the femoral head itself projects medial to Köhler line.

The Köhler line provides a simple reference for medial acetabular depth and femoral-head migration. An acetabular floor crossing the line represents a deep acetabulum, whereas extension of the femoral head medial to the line defines radiographic protrusio acetabuli.

---

History of the Köhler line

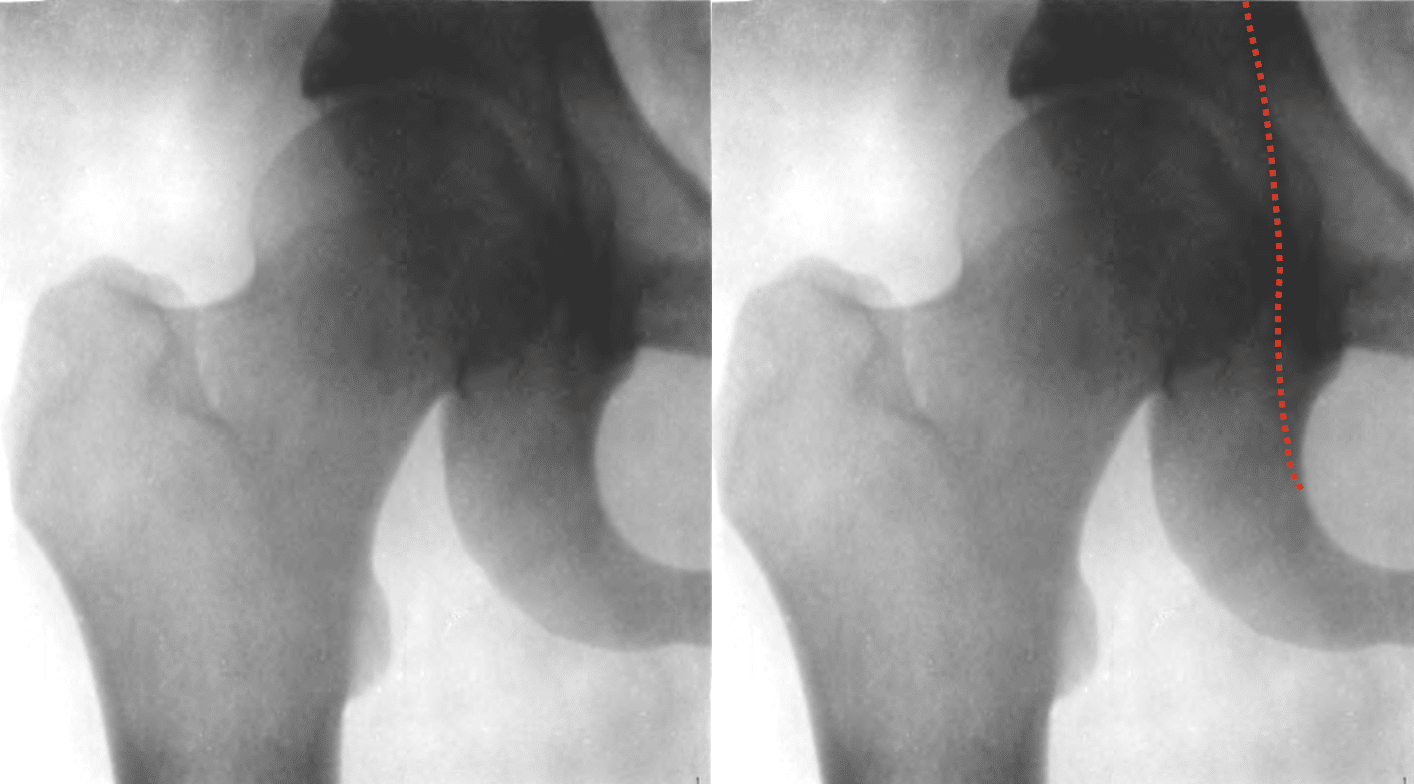

1905 – Alban Köhler (1874–1947) published Die normale und pathologische Anatomie des Hüftgelenks und Oberschenkels in röntgenographischer Darstellung. In his analysis of the normal acetabulum, Köhler investigated the multiple lines produced by projection of the acetabulum and pelvic wall using skeletal radiographs, stereoscopic images, sections and cadaver studies.

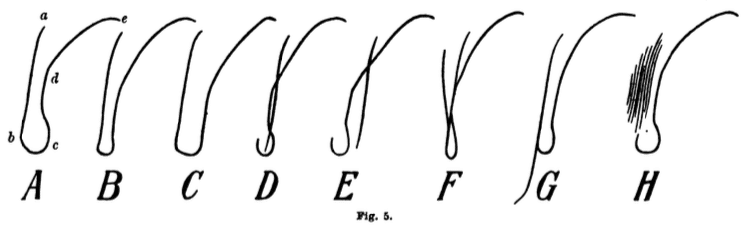

He labelled the long straight component a–b of his Thränenzeichnung (“tear figure”) and identified it as the tangential radiographic projection of the wall of the true pelvis anterior to the ischial spine, rather than a discrete anatomical edge.

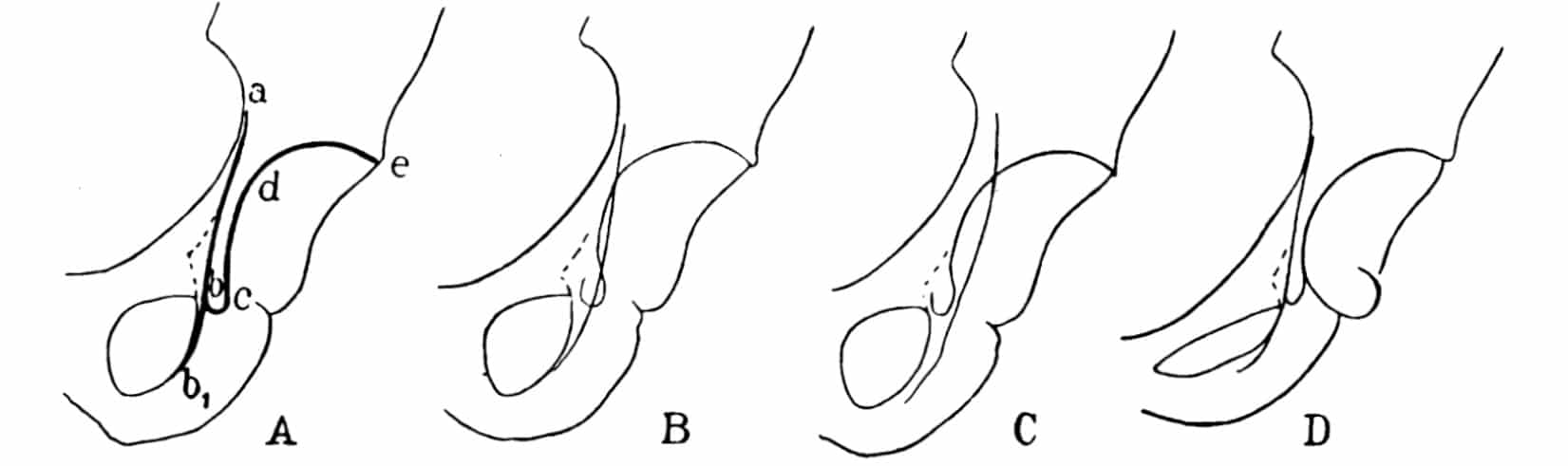

1910 – In the first edition of Lexikon der Grenzen des Normalen und der Anfänge des Pathologischen im Röntgenbilde, Köhler incorporated his hip studies into a general radiological reference work. He retained the three-line construction and illustrated four configurations produced by changes in X-ray projection. Köhler identified a–b–b₁ as the shadow of the wall of the true pelvis and emphasised that the apparent radiographic lines represented projected curved surfaces rather than anatomical edges.

1924 – In the fourth German edition, Köhler retained essentially the same description and four-view projection scheme. He also discussed traumatic displacement of the acetabular floor and illustrated protrusio acetabuli (Fig. 113), linking abnormal medial acetabular projection with intrapelvic protrusion.

1928 – Arthur Turnbull’s English translation of the fifth German edition appeared as Röntgenology: The Borderlands of the Normal and Early Pathological in the Skiagram. The established three-line analysis was retained, including Köhler’s statement “The third line a b b₁ is the shadow of the wall of the pelvis running in the direction of the rays“

The translation made Köhler’s acetabular projection anatomy readily accessible to English-speaking radiologists, while still not using the eponym “Köhler line.”

1939 – John Gilmour explicitly referred to “Kohler’s lines” in his study of protrusio acetabuli, based on his 1936 Hunterian Lecture. He reproduced Kohler’s 1910 figure and identified a–b–b₁ as the line produced by the inner wall of the pelvis and c–d–e as the acetabular contour.

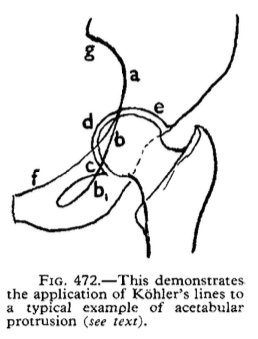

Using a tracing of Fröhlich’s case, Gilmour demonstrated protrusio when the acetabular curve crossed medial to the pelvic-wall line “Kohler has described in detail the significance of the various ‘lines’ which characterize the region of the normal acetabulum on an X-ray film.”

In Gilmour’s tracing of Fröhlich’s case, the acetabular line c–d–e crossed the pelvic-wall line a–b–b₁, while Shenton’s arc remained intact.

1969 – M. J. S. Hubbard used the singular term Köhler’s line and defined it in terms equivalent to the modern ilioischial line:

This line begins on the pelvic border of the ilium and ends on the medial border of the body of the ischium, brushing the dome of the acetabulum on its way.

Hubbard 1969

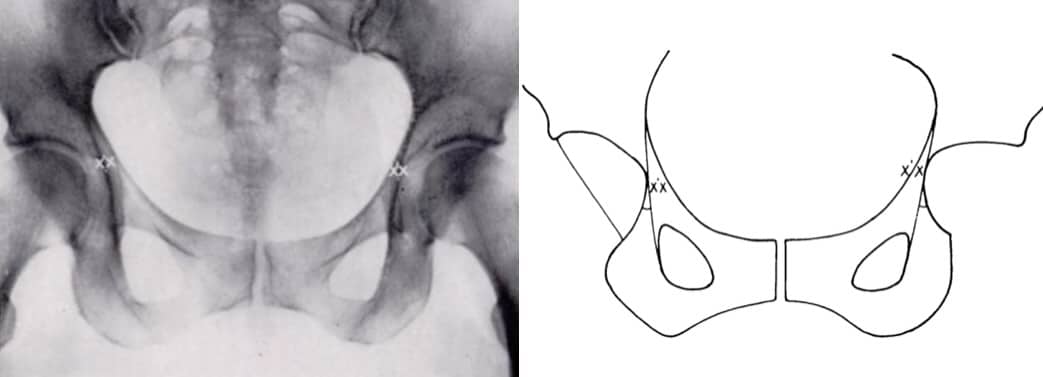

Hubbard used the perpendicular distance between the acetabular dome and Köhler’s line to quantify and serially monitor protrusio acetabuli. In normal hips the acetabular outline met or lay slightly lateral to the line; medial migration represented protrusion.

Hubbard measured the perpendicular distance between the acetabular dome and Köhler’s line to quantify serial progression of protrusio acetabuli. Hubbard cited Köhler’s 1935 second English edition, p.222 as his source.

2005 – Modern radiographic descriptions generally use the anatomical term ilioischial line. Campbell described it on an AP pelvis radiograph as a line drawn from the ilium to the ischial tuberosity and identified it as part of the radiographic posterior column of the pelvis.

---

Associated Persons

• Alban Köhler (1874–1947)

---

Alternative names

• Kohler’s lines, Kohler’s line
• Köhler line

---

Eponymythology

Köhler did not introduce the term “Köhler line”. In 1905 he labelled its principal pelvic-wall component a–b and experimentally demonstrated that it represented the tangential projection of a curved portion of the true pelvic wall. In 1939, Gilmour referred collectively to “Köhler’s lines” and applied them to assessment of protrusio acetabuli. In 1969, Hubbard used the singular “Köhler’s line” for the ilioischial contour used today.

The eponym has evolved from Köhler’s original anatomical work. The radiographic concept is derived from Köhler’s investigations, and the eponymous name introduced by later authors.

---
