Left Ventricular Hypertrophy (LVH)
ECG Diagnostic criteria
Left ventricular hypertrophy produces an electrical phenotype that may include increased QRS voltage, delayed ventricular activation and secondary ST–T abnormalities. ECG criteria are generally specific but insensitive. A positive result supports LVH, while a negative ECG does not exclude increased left ventricular mass.
Interpret voltage alongside repolarisation abnormalities, atrial findings, QRS duration, axis and the clinical context. Echocardiography or cardiac magnetic resonance is required when anatomical confirmation will influence management.
See ECG criteria for left ventricular hypertrophy for the development, validation and comparative performance of the named criteria.
Commonly used ECG-LVH criteria [Detailed overview]
Select a criterion for its original definition, validation evidence and modern interpretation.
| Named criterion | Formula | Practical interpretation |
|---|---|---|
| Sokolow–Lyon 1949 | SV1+ max(RV5,V6) ≥35mm | Highly specific in many cohorts but poorly sensitive |
| Romhilt–Estes score 1968 | Age- and sex-specific thresholds; flat/inverted T wave in V5 or V6; mm | Composite of voltage, strain, atrial abnormality, axis and conduction |
| Cornell 1987 | RaVL+SV3 >28mm (men) RaVL+SV3 >20mm (women) | Sex-specific and generally more sensitive than Sokolow–Lyon |
| Cornell voltage-duration product 1992 | [RaVL+SV3+8mm in women] × QRS duration > 2440 mm·ms | Adds ventricular activation duration to voltage |
| Peguero–Lo Presti 2017 | SD+SV4 ≥ 28mm (men) SD+SV4 ≥ 23mm (women) | Uses the deepest S wave in any lead (SD) |
- Simple voltage criteria: Gubner–Ungerleider, Sokolow–Lyon, Cornell voltage, Peguero–Lo Presti
- Composite scores: Romhilt–Estes, Perugia
- Voltage–duration approaches: Cornell product
- Population-specific criteria: Araoye code
Pathophysiology
- The left ventricle hypertrophies in response to pressure overload secondary to conditions such as aortic stenosis and hypertension

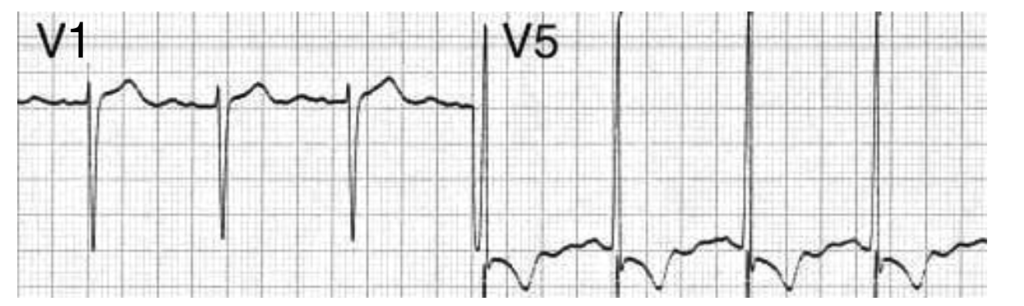

- This results in increased R wave amplitude in the left-sided ECG leads (I, aVL and V4-6) and increased S wave depth in the right-sided leads (III, aVR, V1-3)
- The thickened LV wall leads to prolonged depolarisation (increased R wave peak time) and delayed repolarisation (ST and T-wave abnormalities) in the lateral leads
Additional ECG changes seen in LVH
- Left atrial enlargement
- Left axis deviation
- ST elevation in the right precordial leads V1-3 (“discordant” to the deep S waves)
- Prominent U waves (proportional to increased QRS amplitude)
Causes of LVH
- Hypertension (most common cause)
- Aortic stenosis
- Aortic regurgitation
- Mitral regurgitation
- Coarctation of the aorta
- Hypertrophic cardiomyopathy
Handy Tips
- Voltage criteria should not be interpreted in isolation; consider repolarisation abnormalities, atrial findings, QRS duration, axis and clinical context.
- ECG changes are an insensitive means of detecting LVH (patients with clinically significant left ventricular hypertrophy seen on echocardiography may still have a relatively normal ECG)
ECG Examples
Example 1
Left ventricular hypertrophy (LVH):
- Markedly increased LV voltages: huge precordial R and S waves that overlap with the adjacent leads (SV2 + RV6 >> 35 mm).
- R-wave peak time > 50 ms in V5-6 with associated QRS broadening.
- LV strain pattern with ST depression and T-wave inversions in I, aVL and V5-6.
- ST elevation in V1-3.
- Prominent U waves in V1-3.
- Left axis deviation.
Severe LVH such as this appears almost identical to left bundle branch block — the main clue to the presence of LVH is the excessively high LV voltages.
Example 2
- There are massively increased QRS voltages — the S waves in V3 are so deep they are literally falling off the page!
- The ST elevation in V1-3 is simply in proportion to the very deep S waves (“appropriate discordance”).
- The LV strain pattern is seen in all leads with a positive R wave (V5-6, I, II, III, aVF).
Related Topics
- ECG criteria for left ventricular hypertrophy
- Right ventricular hypertrophy
- Left atrial enlargement
- Left bundle branch block
References
Historical references
- Sokolow M, Lyon TP. The ventricular complex in left ventricular hypertrophy as obtained by unipolar precordial and limb leads. Am Heart J. 1949 Feb;37(2):161-86 [Sokolow-Lyon criteria]
- Casale PN, Devereux RB, Alonso DR, Campo E, Kligfield P. Improved sex-specific criteria of left ventricular hypertrophy for clinical and computer interpretation of electrocardiograms: validation with autopsy findings. Circulation. 1987 Mar;75(3):565-72. [Cornell criteria]
- Molloy TJ, Okin PM, Devereux RB, Kligfield P. Electrocardiographic detection of left ventricular hypertrophy by the simple QRS voltage-duration product. J Am Coll Cardiol. 1992 Nov 1;20(5):1180-6.[Cornell Voltage-Duration Product]
- Araoye MA. Left ventricular hypertrophy by electrocardiography: A code system applicable to Negroes. Nig Postgrad Med J 1996; 3: 92-97.
Review articles
- Edhouse J, Thakur RK, Khalil JM. ABC of clinical electrocardiography. Conditions affecting the left side of the heart. BMJ. 2002 May 25;324(7348):1264-7
- Ogunlade O, Akintomide AO. Assessment of voltage criteria for left ventricular hypertrophy in adult hypertensives in south-western Nigeria. J Cardiovasc Dis Res. 2013 Mar;4(1):44-6.
- Peguero JG, Lo Presti S, Perez J, Issa O, Brenes JC, Tolentino A. Electrocardiographic Criteria for the Diagnosis of Left Ventricular Hypertrophy. J Am Coll Cardiol. 2017 Apr 4;69(13):1694-1703.
Advanced Reading
Online
- Wiesbauer F, Kühn P. ECG Mastery: Yellow Belt online course. Understand ECG basics. Medmastery
- Wiesbauer F, Kühn P. ECG Mastery: Blue Belt online course: Become an ECG expert. Medmastery
- Kühn P, Houghton A. ECG Mastery: Black Belt Workshop. Advanced ECG interpretation. Medmastery
- Rawshani A. Clinical ECG Interpretation ECG Waves
- Smith SW. Dr Smith’s ECG blog.
- Wiesbauer F. Little Black Book of ECG Secrets. Medmastery PDF
Textbooks
- Zimmerman FH. ECG Core Curriculum. 2023
- Mattu A, Berberian J, Brady WJ. Emergency ECGs: Case-Based Review and Interpretations, 2022
- Straus DG, Schocken DD. Marriott’s Practical Electrocardiography 13e, 2021
- Brady WJ, Lipinski MJ et al. Electrocardiogram in Clinical Medicine. 1e, 2020
- Mattu A, Tabas JA, Brady WJ. Electrocardiography in Emergency, Acute, and Critical Care. 2e, 2019
- Hampton J, Adlam D. The ECG Made Practical 7e, 2019
- Kühn P, Lang C, Wiesbauer F. ECG Mastery: The Simplest Way to Learn the ECG. 2015
- Grauer K. ECG Pocket Brain (Expanded) 6e, 2014
- Surawicz B, Knilans T. Chou’s Electrocardiography in Clinical Practice: Adult and Pediatric 6e, 2008
- Chan TC. ECG in Emergency Medicine and Acute Care 1e, 2004
LITFL Further Reading
- ECG Library Basics – Waves, Intervals, Segments and Clinical Interpretation
- ECG A to Z by diagnosis – ECG interpretation in clinical context
- ECG Exigency and Cardiovascular Curveball – ECG Clinical Cases
- 100 ECG Quiz – Self-assessment tool for examination practice
- ECG Reference SITES and BOOKS – the best of the rest
