Perkins line

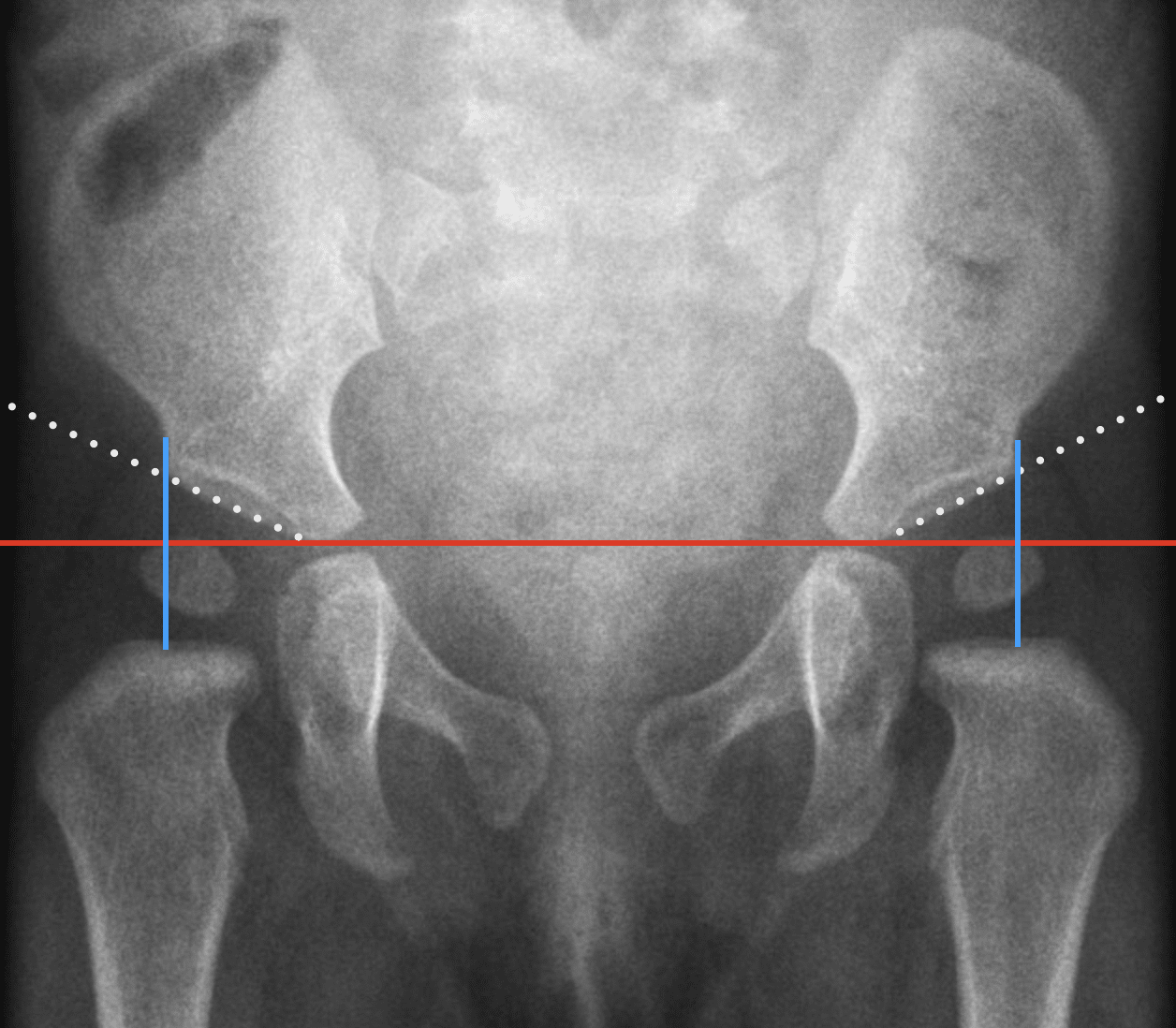

In the normally located hip, the ossified femoral-head epiphysis should lie below Hilgenreiner line and medial to Perkin line, within the inferomedial quadrant. When the femoral head is not yet ossified, the position of the proximal femur relative to these landmarks remains useful. Modern descriptions specifically define Perkin line as perpendicular to Hilgenreiner line at the lateral acetabular roof.

---

History of the Perkins line

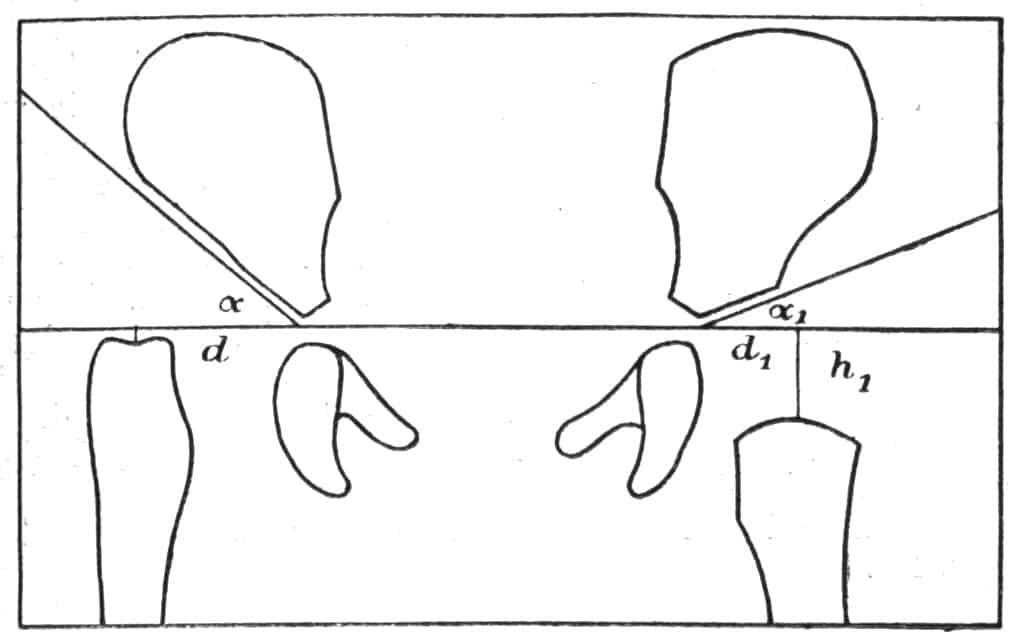

1925 – Heinrich Hilgenreiner (1870–1953) described a horizontal baseline connecting the two Y-shaped (triradiate) cartilages as part of a wider radiographic measurement system for congenital hip dislocation. He extended this line laterally and used perpendicular measurements from the proximal femora to quantify superior displacement, together with measurements of lateral displacement and acetabular inclination.

My procedure is to draw a horizontal line connecting the two Y-shaped cartilages.

Importantly, Hilgenreiner’s perpendiculars arose from the proximal femora. They were therefore not the modern Perkin lines.

1928 – George Perkins (1892–1979) published Signs by which to diagnose congenital dislocation of the hip in The Lancet. His aim was to provide a simple radiographic method that could show whether the femoral head was displaced upwards or outwards. Perkins first drew his own transverse reference:

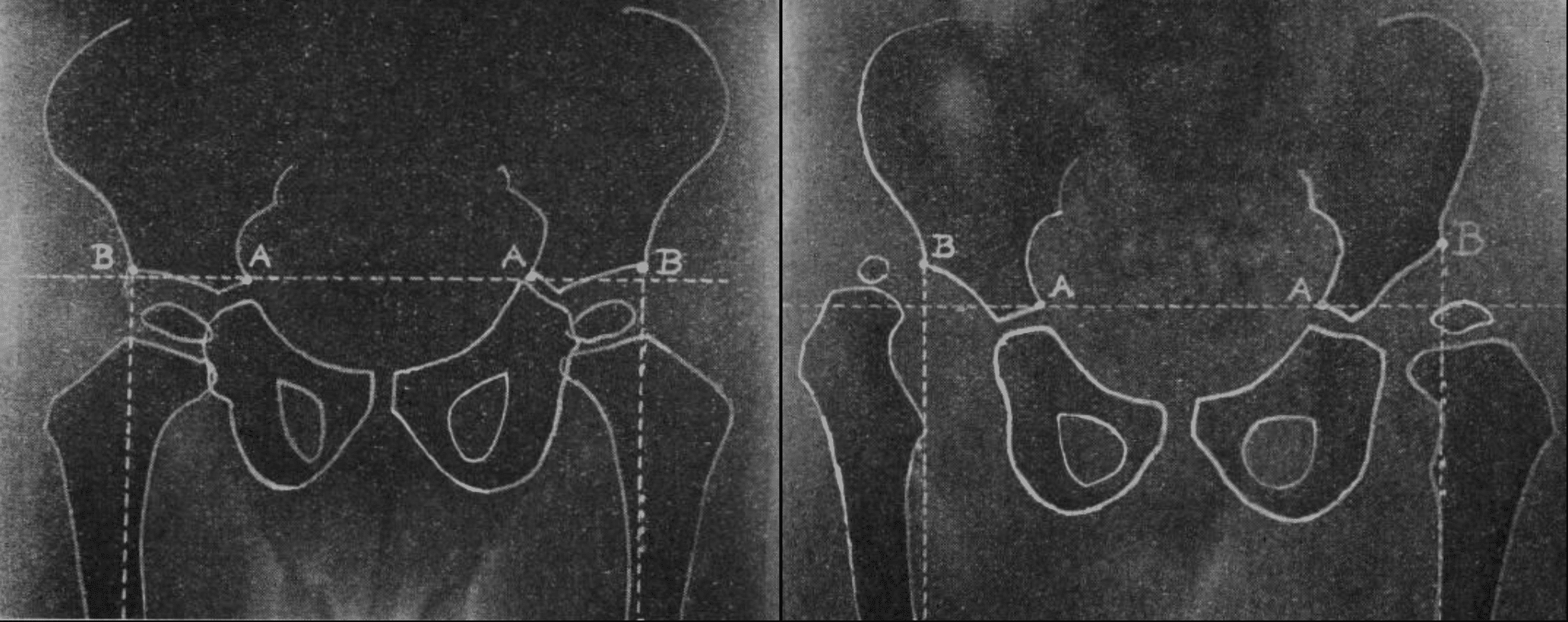

Draw a horizontal line joining A to A; A is the innermost part of the ilium at the Y-shaped cartilage of the acetabulum.

He then drew a perpendicular through the lateral pelvic landmark B. The femoral-head ossification centre should lie below the horizontal line and medial to the perpendicular; superior or lateral displacement suggested congenital dislocation

These two lines will show whether the head of the femur is further up or further out than it should be

1932 – Louis Ombrédanne (1871-1956) described an equivalent vertical acetabular reference as part of a quadrant construction for congenital hip dislocation. He drew a horizontal reference through the acetabular-floor shadows and a vertical tangent to the lateral acetabular roof. The normal femoral-head ossific nucleus lay inferomedial to their intersection

1932 – Vittorio Putti (1880–1940) published Analisi della triade radiosintomatica degli stati di prelussazione [Analysis of the radiographic symptom triad of preluxation]. Reimers and Bialik cite Putti’s line as synonymous with Perkins line. The original 1932 article has not yet been directly reviewed, so the precise construction remains to be confirmed.

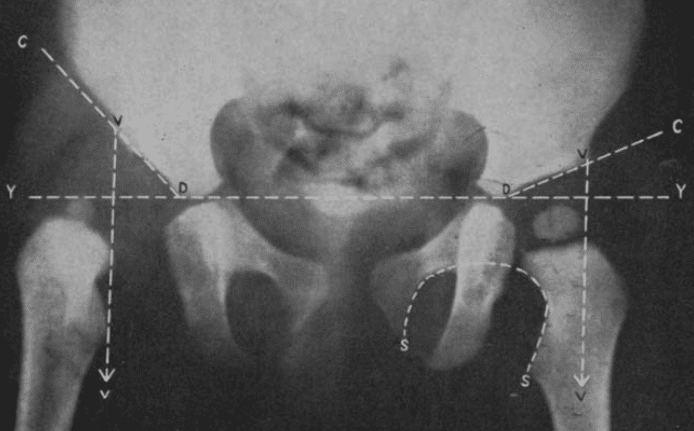

1951 – Harold E. Martin published Geometrical-anatomical factors and their significance in the early x-ray diagnosis of hip-joint disease in children. Martin described a horizontal Y-line through the cotyloid notches and a V-line dropped vertically from the lateral edge of the superior acetabular lip. Normally the femoral-head epiphysis lay below the Y-line and medial to the V-line. However with subluxation it could lie lateral to the V-line while remaining below the Y-line. With complete dislocation it lay superior and lateral to their intersection.

Martin introduced the construction as part of “Hilgenreiner’s lines”, referring simply to the horizontal Y-line and vertical V-line. The term Martin’s V-line therefore appears to be a later attribution

1980 – Jørgen Reimers incorporated Perkin lines perpendicular to Hilgenreiner line into his radiographic assessment of hip migration in children with cerebral palsy. The resulting migration percentage quantified the proportion of the femoral head lying lateral to the acetabular boundary. This embedded the Hilgenreiner–Perkin construction in paediatric hip assessment. Note: Reimers and Bialik treated Perkins line as synonymous with the Ombrédanne line, Putti line and Martin V-line

---

Associated Persons

• Heinrich Hilgenreiner (1870-1953) and the Hilgenreiner line
• Edward Warren Hine Shenton (1872–1955) and the Shenton line
• George Perkins (1892-1979) and the Perkins line
• Louis Ombrédanne (1871-1956)
• Dietrich Tönnis (1927-2010) and the Tönnis angle
• Jørgen Reimers (1931-2008)

---

Alternative names

• Perkin line
• Perkin’s line
• Perkins’ line

Historical synonyms / related terms

• Ombrédanne line, Ombrédanne–Perkins vertical
• Putti line
• Martin V-line

---

Eponymythology

Hilgenreiner’s vertical lines are not Perkin lines.

Hilgenreiner starts with the femur. He drops a perpendicular from the centre of the proximal femur onto his horizontal Y-cartilage baseline. The position of that perpendicular therefore changes when the femur moves. He then derives h and d from that construction.

Perkins starts his vertical from the pelvis. Point B is a fixed pelvic landmark — explicitly the anterior inferior iliac spine / prominent outer lower iliac angle on the radiograph — and he drops a vertical from B to intersect his A–A transverse line.

The modern Hilgenreiner–Perkin construction represents a later synthesis of two closely related but not identical historical constructions.

Feature	Hilgenreiner, 1925	Perkins, 1928	Modern terms
Horizontal reference	A “connecting line of the two Y-cartilages extended laterally.“	“Draw a horizontal line joining A to A”; A = “the innermost part of the ilium at the Y-shaped cartilage of the acetabulum.”	Hilgenreiner line: horizontal through the superior aspects of the two triradiate cartilages.
Vertical reference	A perpendicular is dropped from the centre of the proximal/central end of each femur to the horizontal baseline. The vertical moves with the femur; it is a measurement line, not a fixed pelvic landmark.	A vertical is drawn from B, which Perkins identifies as the anterior inferior iliac spine, “the prominent outer lower angle of the ilium as seen on the radiogram”, meeting A–A at right angles.	Perkins line: perpendicular to Hilgenreiner line through the lateral-most acetabular roof / lateral acetabular margin.
Superior displacement	Quantified as h: perpendicular distance between the proximal femur and Hilgenreiner’s baseline. h decreases as the femur migrates superiorly.	Femoral-head ossification centre should lie below A–A; above it indicates superior displacement.	Epiphysis should lie below Hilgenreiner line.
Lateral displacement	Quantified as d: distance along the horizontal baseline from the perpendicular footpoint to the acetabulum/Y-cartilage. d increases with lateral displacement.	Femoral-head ossification centre should lie medial/internal to the B vertical; lateral position indicates displacement.	Epiphysis should lie medial to Perkin line, (in the inferomedial quadrant)
Additional measurement	α, the acetabular roof angle relative to the Y-cartilage baseline.	No equivalent angular measurement in this paper.	Hilgenreiner line remains the reference baseline for the acetabular index.
Aim	Quantitative measurement of height, lateral distance and acetabular inclination, especially before femoral-head ossification.	Simple categorical test: Is the head too high or too far out?	Combined system used for DDH assessment and hip-surveillance methods.

Perkins provided the earliest primary description of a fixed vertical pelvic boundary for femoral-head localisation. Ombrédanne and Putti were subsequently associated with equivalent lines in 1932, while Martin illustrated the same geometry as a V-line in 1951. By 1981 Reimers and Bialik regarded all four names as synonymous.

---
