Pulmonary Artery Catheter

OVERVIEW

  • aka Swan-Ganz catheter (or ‘the yellow snake’)

USES

  • continuous cardiac output monitoring
  • central temperature monitoring
  • measurement of pulmonary artery pressure (can also measure RA and RV pressures during insertion)
  • measurement of mixed venous saturations
  • estimation of diastolic filling of left heart (normal PCWP 2-12mmHg)

Settings it is commonly used are:

  • right ventricular failure
  • pulmonary hypertension
  • weaning failure of cardiac origin
  • post-cardiac surgery

DESCRIPTION

  • available in a number of sizes for both adults and children
  • range from 60-110cm in length and 4-8F in calibre
  • Balloon inflation volumes range from 0.5-1.5ml
  • catheter is made from polyvinyl chloride that is pliable at room temperature and softens at body temperature
  • catheter is marked at 10cm increments to aid insertion
  • catheters vary depending on the manufacturer but all are bascially a quadruple-lumen thermodilution catheter with various additions

Components (varies with PAC type):

  • Syringe (plunger withdraws only to 1.5ml)
  • introducer with side port (acts as a rapid infuser)
  • Sliding locking device
  • Markings designating distance from tip (each broad mark represents 10cm)
  • Connectors to monitor
  • 8 French PVC yellow catheter
  • Lumens
    • blue = right atrial lumen = proximal injectate port -> terminates 30cm from the tip of the catheter lies within the right atrium when the tip of the catheter is in the pulmonary artery. This port can monitor RA pressures (RAP/ CVP) and receive the injectate for cardiac output studies. Can also be used to give fluids and drugs.
    • thermistor = red/white connector -> includes a temperature-sensitive wire that terminates 4 cm proximal to tip of the catheter. The terminal portion of the wire, termed the thermistor bead, lies in one of the main pulmonary arteries when the catheter tip is properly positioned. Connection of the thermistor port to a CO monitor allows determination of a CO using thermodilution.
    • white = proximal infusion port -> lumen terminates 31cm from the tip of the catheter in the right atrium and is used for infusing fluids and drugs.
    • yellow = pulmonary artery lumen = distal port -> allows measurement of PA pressures and measurement of mixed venous SO2 . Caustic or hyperosmotic solutions must not be infused through this lumen.
    • red = balloon inflation/deflation
  • Temperature sensitive wire with thermistor bead
  • Balloon surrounding tip-containing lumen in end

Other additions include:

  • Catheters that offer pacing capabilities
  • fiberoptics allowing continuous in vivo monitoring of mixed venous oxygen saturation
  • Thermodilution catheters for continuous cardiac output measurements -> built in thermal filament that heats the surrounding blood in the right ventricle (RV) and the temperature change is detected by a thermistor located in the tip of the catheter in the pulmonary artery. This change is cross correlated with the RV thermal input to produce a thermodilution wash-out curve and the area underneath is used to get the CO. This information is used to generate graphs of CO change over time.

METHOD OF INSERTION

Technique

  • sterile technique
  • percutaneous Seldinger technique like CVL insertion
  • preferred site: RIJ > LSCV > RSCV > LIJ (can also insert femorally)
  • insert sheath (aka Cordis) first
  • transducer is attached to the distal lumen to observe distinct waveform
  • once the right ventricular waveform is seen the balloon is inflated to allow the PAC to progress through the right heart
  • distinct waveforms plus known distance inserted aid certainty about position
  • If these transitions do not occur at the estimated length then the catheter should be withdrawn and reinserted (see distances below)
  • Once the pulmonary artery is reached the wedge waveform can be used to confirm position
  • PAC is secured with the balloon deflated
VIDEO: Swan-Ganz insertion

Distances

  • distance to right atrium: 10-15cm from the subclavian vein, 15-20cm from the jugular vein, 30-40cm from the femoral vein
  • The right ventricle is another 10cm, and the pulmonary artery is another 10 cm after that, and the wedge position a further 10 cm

Pressures

  • SVC/RA = 0-6 mmHg (at this point inflate balloon with 1.5 mL of air)
  • RV = 25/0 mmHg
  • PA = 15-30/5-15 mmHg
  • PAOP = 2-10 mmHg at 40-50 cm distance (if SCV/ IJ insertion)

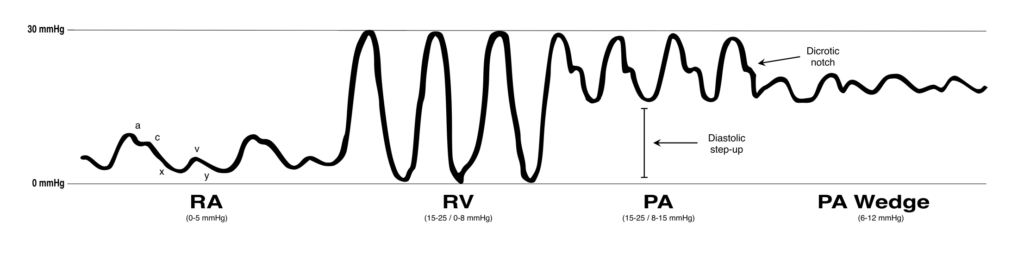

  • look for pressure waves to change as shown below:
VIDEO: Swan-Ganz Physiology

Confirm position

  • Chest x-ray – the tip should curve, without loops or knots, into a main pulmonary artery but not be more peripheral than the junction between the medial and middle third of the ipsilateral lung field in West zone 3 (below the level of the left atrium)

Balloon Inflation

  • Overinflation can cause damage to the pulmonary artery and/or the balloon itself
  • balloon should be inflated with a volume of 1.5 mL of air or less.
  • the balloon should not remain inflated for more than four respiratory cycles when dampening/ wedging occurs
  • balloon deflation should be passive – do not pull back on the balloon plunger to deflate
  • Ensure that the PA waveform reappears on the monitor following balloon deflation
  • When the balloon is deflated, remove the syringe and expel the air before reattaching it to the balloon inflation port – together with ensuring that the gate valve is closed, this will help prevent subsequent accidental wedging of the PA catheter

Obtaining pressure measurements

  • The stopcock nearest the transducer is known as the air-fluid interface and must be positioned level with the patient’s left atrium (the phlebostatic axis). For every centimeter above the left atrium the PAC is reference the measured pressure is underestimated by 0.736 mmHg (and vice versa). In the supine patient the phlebostatic axis is identified by the intersection of 2 lines: (1) vertically from the point where the 4th intercostal space abuts the sternum (2) horizontally at the midanteriorposterior line (half the distance between the anterior and posterior aspect of the chest) (this is more accurate than the mid-axillary line)
  • Zeroing ensures only the pressure generated within the patient is measured without the interference of external factors. The stopcock closest to the transducer is turned “off to patient” and the cap is removed “open to air” and the monitor’s zero function is activated, then the cap isrpelaced and the stopcock opened to the patient
  • The tubing must be the correct type (appropriate compliance and diameter) and length (<4ft) to prevent dynamic response errors (sensitivity to pressure variations)
  • Consistency should be used in patient position when obtaining hemodynamic readings, the patient’s backrest can be angled up to 60 degrees in the supine position (any variations in postiion when measured should be documented)
  • measurements should be obtained at end expiration for all patients so that there is the least effect of pleural pressure on intracardiac pressures
  • See Pulmonary Artery Wedge Pressure and Wedging

Troubleshooting

OTHER INFORMATION

Thermal Dilution

  • injection of cold fluid
  • recording of change in temperature with time
  • rate of blood flow is inversely proportional to the change in temperature over time, according to the Hamilton-Stewart equation
  • advantages: — cheap, non-toxic, arterial puncture avoided, absence of re-circulation
  • disadvantages: — requires insertion of PAC, mixing with venous blood may be incomplete, PA blood flow varies greatly with respiration
  • causes of inaccuracies: — catheter malposition, injection mistakes (volume, speed, temperature), inaccurate thermistor, TR, intra-cardiac shunts, wrong computation constant

Measured values

  • Q: 4-8L/min
  • CI: 2.5-4L/min
  • CVP: 2-6mmHg
  • PAWP: 8-12mmHg
  • PAP: 25/10mmHg
  • SvO2: 0.65-0.70
  • Temperature

Derived values – use of formula: Q = MAP-CVP/SVR

  • SV: 50-100mL/beat
  • SVI: 25-45mL/beat/m2
  • SVR: 900-1300 dynes-sec/cm5
  • SVRI: 1900-2400 dyne-sec/cm5
  • PVR: 40-150 dyne-sec/cm5
  • PVRI: 120-200 dynes-sec/cm5

PAC DATA INTERPRETATION

  • Right heart failure: high CVP, low CI, high PVR
  • Left heart failure: high PCWP, low CI, high SVR
  • Pericardial tamponade: high PCWP, high SVR, CVP = PCWP
  • Hypovolemia: low CVP, low PCWP, low CI, high SVR
  • Cardiogenic: high CVP, high PCWP, low CI, high SVR
  • Sepsis (Distributive): low CVP, low PCWP, high CI, low SVR

PAC COMPLICATIONS

Early

  • usual complications of central line insertion
  • arrhythmias
  • heart block (6% RBBB -> beware if patient already has LBBB!)
  • infection
  • knotting
  • pulmonary infarction
  • hypotension
  • hypoxia
  • PA rupture (see Pulmonary haemorrhage after PAOP measurement)
  • air embolism
  • valve damage or incompetence

Late

PRO/CON DEBATE FOR PAC USE

Arguments for

  • in some populations (high risk cardiac surgery) helps to delineate different forms of shock
  • may facilitate the early diagnosis of shock (ie. young patients that can maintain MAP in the face of decreasing cardiac output)
  • if intra-aortic balloon pump used can still determine cardiac output (unlike PiCCO)
  • other monitors also have little data to support their use
  • PACMAN study showed they were safe in non-cardiac patients admitted to ICU

Arguments against

  • risk of major vessel injury with large bore introducer sheath insertion for PAC
  • risk of pulmonary artery haemorrhage
  • risk of dysrrhythmia on insertion and/or high grade block if already in LBBB
  • data error if PAC not in West Zone III
  • we don’t know what an adequate Q is
  • absence of data supporting any algorithm to maintain a certain cardiac output
  • studies suggest that CVP/RAP and PAOP measurements are inaccurate indicators of RV and LV preload respectively

EVIDENCE SUMMARY

  • RCTs have not shown any benefit from PAC use
  • early data showed increase harm
  • PACMAN trial subsequently showed no change in inhospital mortality, suggesting it can be used safely but gives no benefit
  • probably better to use PACs in ‘really sick’ patients
  • PAC insertion and use is an invasive procedure with highly morbid complications (e.g. bleeding on insertion, PA rupture, arrhythmia, PE)
  • PAC use does have the potential change management in sick patients in the early resuscitation phase

See also Pulmonary Artery Catheter Literature Summaries

AN APPROACH TO PAC USE

  • potentially useful in undifferentiated, multi-factorial shock states (for Q and ScVO2)
  • useful in right heart pathology and pulmonary hypertension
  • requires careful patient selection (including a contraindication assessment)
  • don’t wedge (PADP can usually be used to estimate PAOP)
  • monitor for complications (predominantly on insertion)
  • remove after 72 hours

References and Links

LITFL

Journal articles

  • Hadian M, Pinsky MR. Evidence-based review of the use of the pulmonary artery catheter: impact data and complications. Crit Care. 2006;10 Suppl 3:S8. Review. PubMed PMID: 17164020; PubMed Central PMCID: PMC3226129.
  • Payen D, Gayat E. Which general intensive care unit patients can benefit from placement of the pulmonary artery catheter? Crit Care. 2006;10 Suppl 3:S7. Review. PubMed PMID: 17164019; PubMed Central PMCID: PMC3226130.
  • Ranucci M. Which cardiac surgical patients can benefit from placement of a pulmonary artery catheter? Crit Care. 2006;10 Suppl 3:S6. Review. PubMed PMID: 17164018; PubMed Central PMCID: PMC3226128.
  • Robin E, Costecalde M, Lebuffe G, Vallet B. Clinical relevance of data from the pulmonary artery catheter. Crit Care. 2006;10 Suppl 3:S3. Review. PubMed PMID: 17164015; PubMed Central PMCID: PMC3226125.
  • Swan HJ, Ganz W, Forrester J, Marcus H, Diamond G, Chonette D. Catheterization of the heart in man with use of a flow-directed balloon-tipped catheter. N Engl J Med. 1970 Aug 27;283(9):447-51. PubMed PMID: 5434111.
